Wize University Physics Textbook (Master) > Force Vectors (Advanced Info)
Vector Addition of 2D Forces (Force Triangle)
Popular Courses
PHYS 211
University of Calgary
PHYS 124
University of Alberta
PCS 120
Toronto Metropolitan University
PHYS 115
University of Waterloo
PHYS 117
University of British Columbia
PHYC 1190
Dalhousie University
ENGG 212
University of Calgary
PHYS-1300
University of Windsor
PHY 1121
University of Ottawa
PHY 1124
University of Ottawa
PHYS 121
University of Waterloo
PHYS 227
University of Calgary
PHY 9B
University of California - Davis
PHYS 107
University of British Columbia
PHYS 1010
York University
PHYS 1020
University of Manitoba
PHYS 1007
Carleton University
PHY 9A
University of California - Davis
PHY 111
Arizona State University - Tempe
PHYS 1P91
Brock University
0:00 / 0:00
Resolve F1 into components along the u and v axes and determine the magnitudes of these components).
It is easiest to solve these types of problems that use the non-traditional x & y axes (u & v in this case) by building a FORCE TRIANGLE, and then using the law of Sines and Cosines to find the components (of the force along each axis)
Force Triangle: Build using F1, u, and v.
v component: from Law of Sines
v / sin45° = 200 / sin30°
v = 283 lb
u component: from Law of Cosines OR from Law of Sines (now that we have v)
CAREFUL: if you answer for 'v' is incorrect, so will your answer for 'u'. you can use the Law of Cosines to double-check your answer!
u / sin105° = 200 / sin30°
u = 386 lb
(ANS: F1u= 386N, F1v=283N)
Mark Yourself Question
- Grab a piece of paper and try this problem yourself.
- When you're done, check the "I have answered this question" box below.
- View the solution and report whether you got it right or wrong.

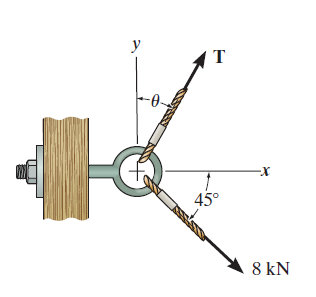

Determine the magnitude and direction of the resultant force measured from the +x axis. Use Θ=30° and T=6 kN.
