Interior Angles of Polygons

Definitions
A polygon is a shape that has multiple sides.
- Triangles have 3 sides
- Quadrilaterals have 4 sides
- n-sided polygons have n sides

An interior angle of a polygon is an angle that is inside of the polygon.

A regular n-gon is a polygon with n equal sides and n equal interior angles (the exterior angles will also all be equal).

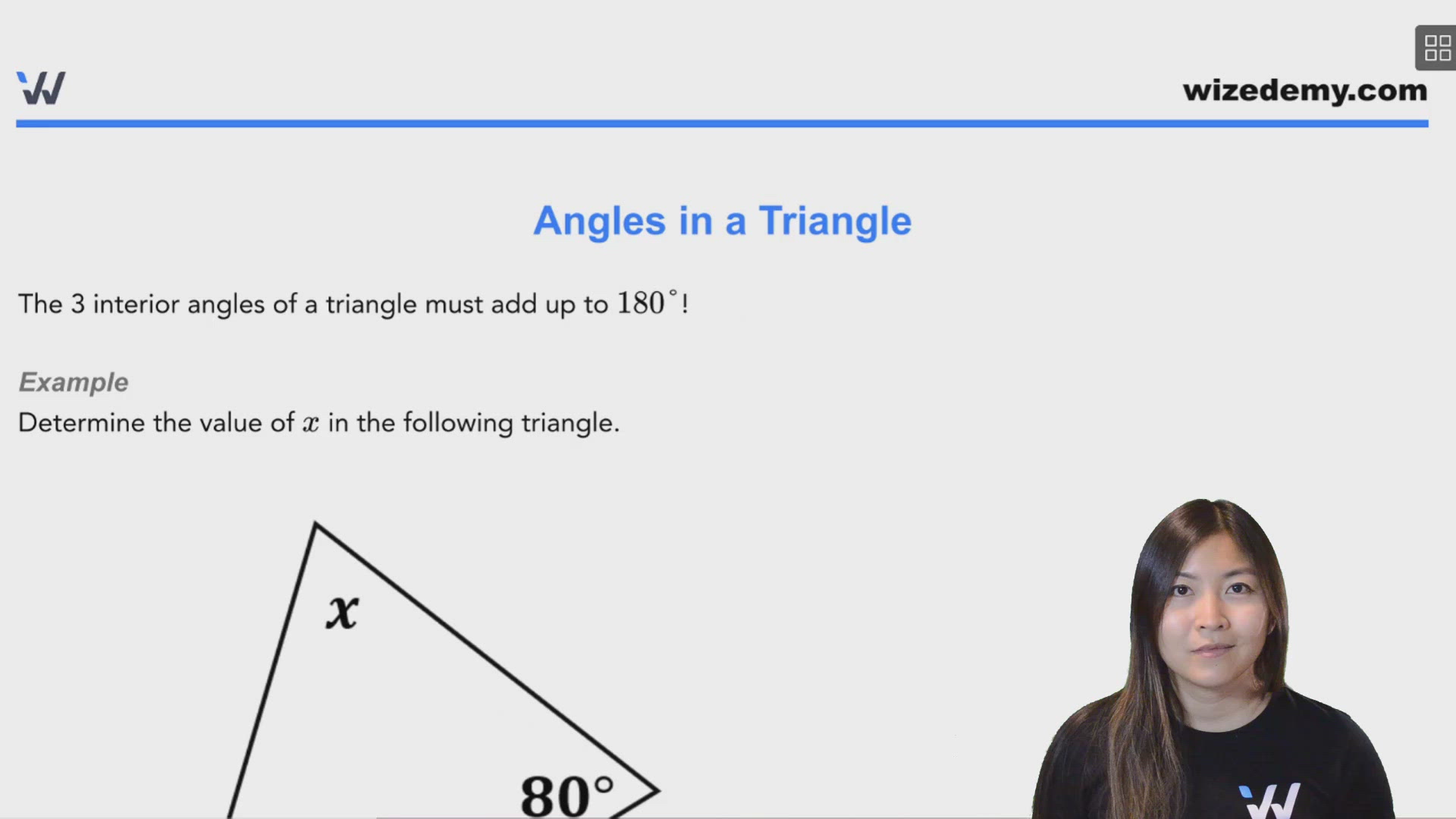

Angles in a Triangle
The 3 interior angles of a triangle must add up to 180°!
Example

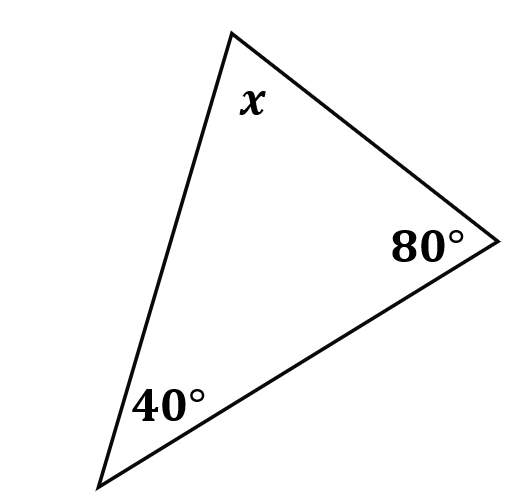

Determine the value of x in the following triangle.

We know that all 3 interior angles of a triangle must add up to 180°:
x+40°+80°x+120°xx====180°180°180°−120°60°

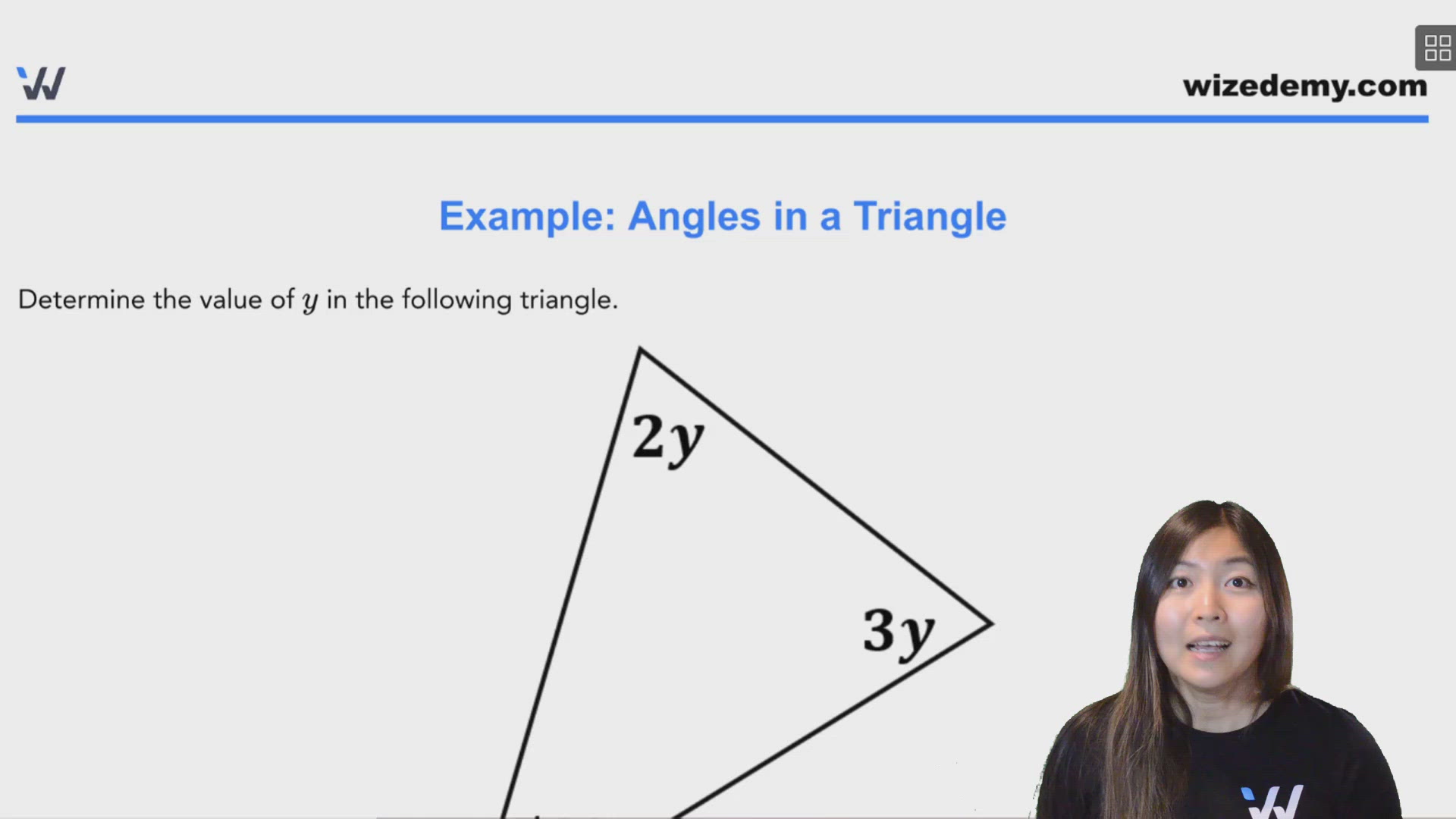

Example: Angles in a Triangle

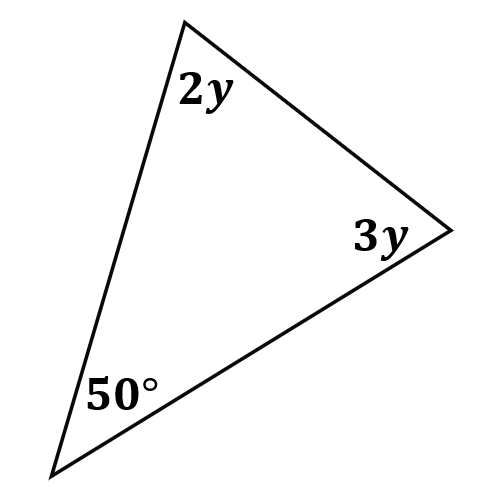

Determine the value of y in the following triangle.

All 3 interior angles of a triangle must add up to 180°.
50°+2y+3y50°+5y5y5yyy======180°180°180°−50°130°5130°26°
So, y=26°.

Interior Angles in a Polygon

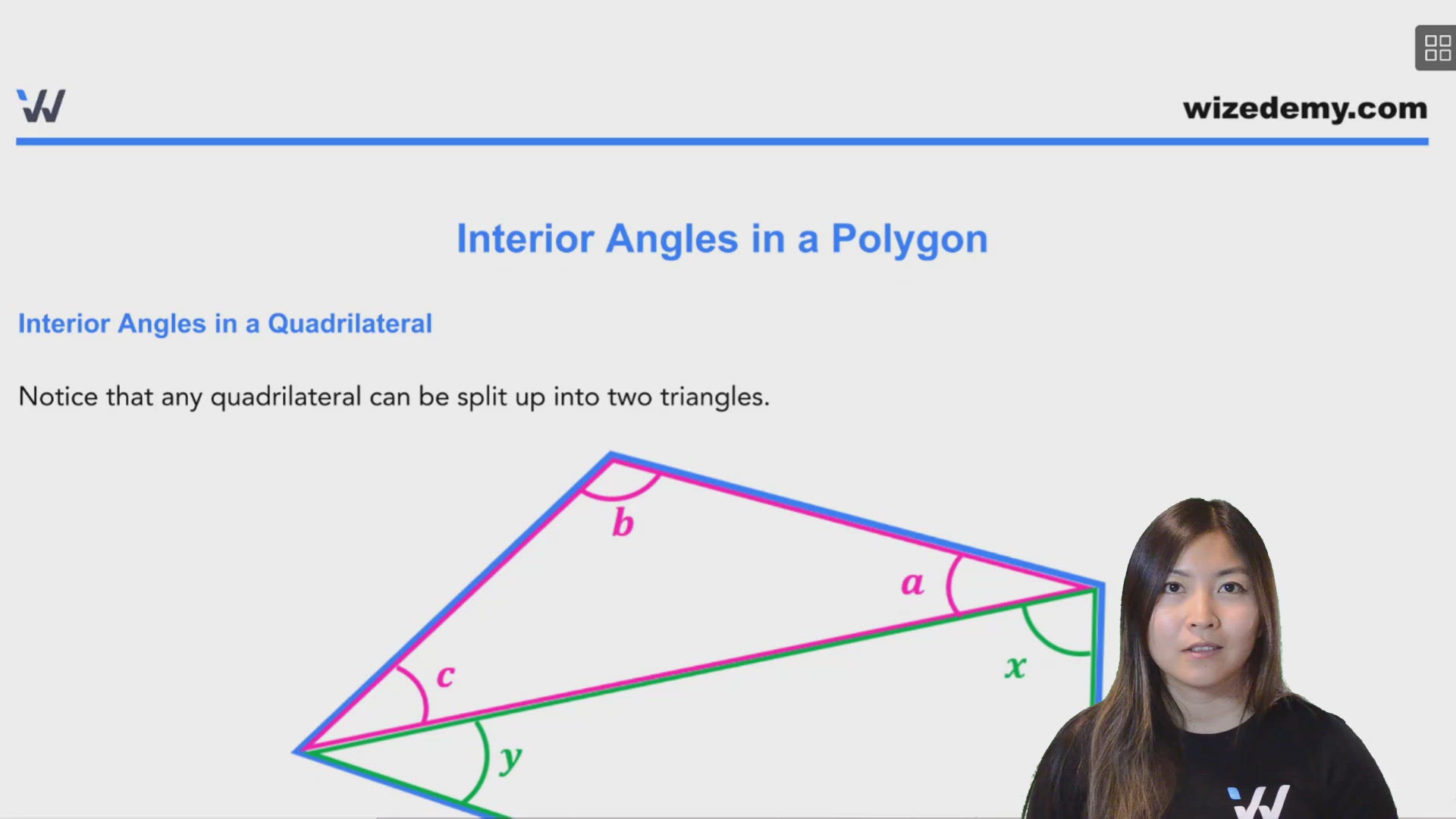

Interior Angles in a Quadrilateral

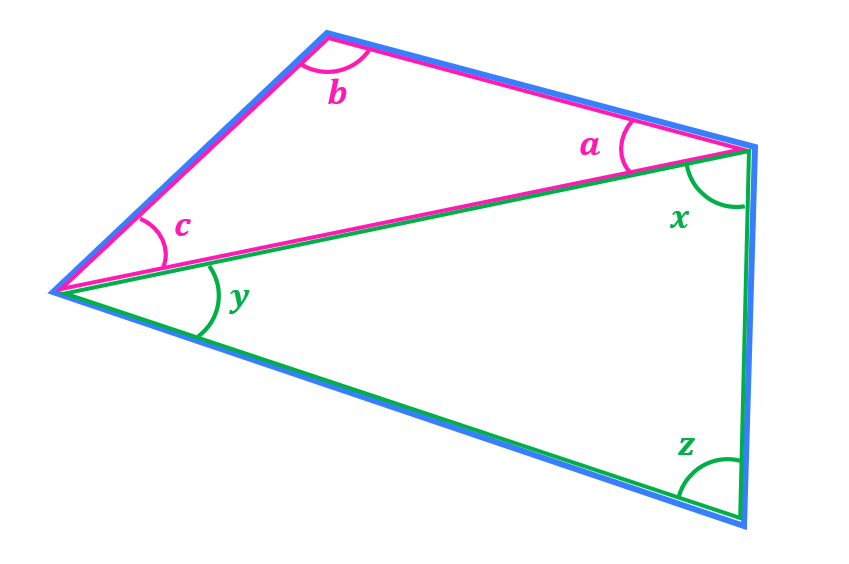

Notice that any quadrilateral can be split up into two triangles.

Example 1
What is the sum of the interior angles of a square? A rectangle? A parallelogram?
They are all 360°! Since squares and rectangles have 4 right angles as interior angles, we know that the interior angles add up to 4×90°, which is also 360°.
Interior Angles in a Polygon
Example 2

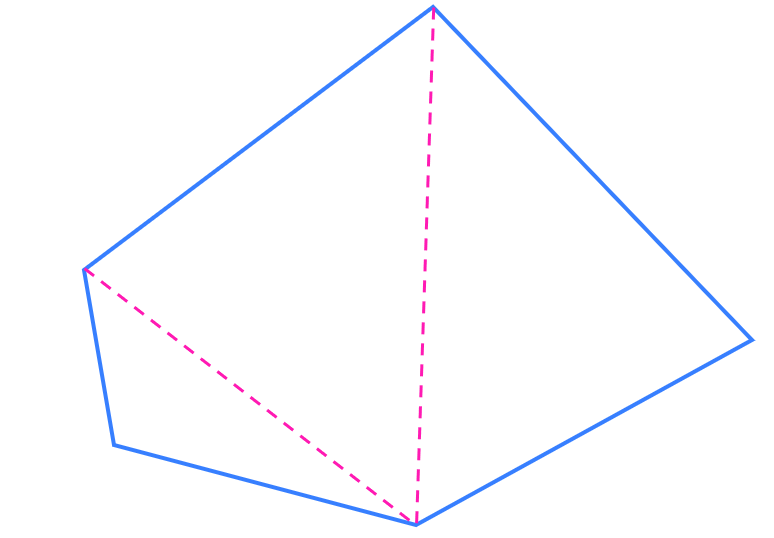

If we try to split up a 5-sided polygon into triangles,
a) what is the least number of triangles you will need?
You will get 3 triangles, for example:

b) what can we say about the sum of the interior angles in a 5-sided polygon?
The sum of the interior angles must be 3×180°=540°
Example 3
If we try to split up a 8-sided polygon into triangles,
a) what is the least number of triangles you will need?
You will get 6 triangles, for example:

b) what can we say about the sum of the interior angles in a 8-sided polygon?
The sum of the interior angles must be 6×180°=1080°
Practice: Interior Angles in a Polygon

a) How many sides does the above polygon have?
b) What is the sum of interior angles for the polygon above?
c) Determine the missing angle.
Practice: Interior Angles in a Polygon
What is the measure of one of the interior angles in a regular 20-sided polygon?
Practice: Interior Angles in a Polygon
If each of the interior angles of a regular polygon is 150°, how many sides does this regular polygon have?
