Angles of Triangles


Image illustrating Theory


Triangles are special polygons that contain a variety of angles. Depending on the type of triangle and type of angle, there are all kinds of interesting properties to discover.


Types of Angles

The interior angle of a triangle are the ones located inside of the triangle. If a side is extended, then the angle that forms a linear pair with an interior angle is considered an exterior angle.


Image illustrating Theory


Properties

  • Sum of Angles Theorem (Triangle) - The sum of all the angles inside a triangle is 180 degrees.
  • Exterior Angle Theorem (Triangle) - The measure of an exterior angle is equal to the sum of the two nonadjacent angles inside the triangle.

Example

Draw a triangle such that it has the following

  • An interior right angle.
  • An exterior angle with a measure of 120∘120^\circ.
  • Label all the interior angles with their measure.

ANSWER:

One possible answer would be

Image illustrating Theory

Create a free account to get started

Unlock full course notes by signing up

  • Video lessons taught by top educators
  • Practice questions with guided solutions
  • Written review notes for reference
  • Expert answers anytime from course tutors

Triangles and Terrariums


Image illustrating Example


A terrarium is a closed glass container for growing plants.

Joyce is currently working on a terrarium that she hopes to grow several cacti in. Its sides are made of glass triangles.


Image illustrating Example


Use the diagram of one of these sides to answer the following questions.


1. What do we call angle ∠PRQ\angle{PRQ}?


ANSWER: ∠PRQ\angle{PRQ} is called an exterior angle.


2. What do we call the pair of angles ∠PRQ and ∠PRS\angle{PRQ} \text{ and } \angle{PRS}?


ANSWER: When talking about the pair ∠PRQ and ∠PRS\angle{PRQ} \text{ and } \angle{PRS}, we say they are a linear pair.


3. If m∠PRQ=113∘m\angle{PRQ} = 113^\circ and m∠RPS=46∘m\angle{RPS} = 46^\circ, what is m∠PSRm\angle{PSR} ?


ANSWER: m∠PSR=67∘m\angle{PSR} = 67^\circ


We can use the fact that a linear pair of angles is supplementary to start

m∠PRQ+m∠PRS=180∘113∘+m∠PRS=180∘m∠PRS=67∘\begin{aligned} m\angle{PRQ} + m\angle{PRS} = 180^\circ \\ 113^\circ + m\angle{PRS} = 180^\circ \\ m\angle{PRS} = 67^\circ \\ \end{aligned}

Now using the sum of all interior angles must be 180 we have

m∠PRS+m∠RPS+m∠PSR=180∘67∘+46∘+m∠PSR=180∘113∘+m∠PSR=180∘m∠PSR=67∘\begin{aligned} m\angle{PRS} + m\angle{RPS} + m\angle{PSR} &= 180^\circ \\ 67^\circ + 46^\circ + m\angle{PSR} &= 180^\circ \\ 113^\circ + m\angle{PSR} &= 180^\circ \\ m\angle{PSR} &= 67^\circ \\ \end{aligned}

Identifying Angles


Illustration for practice question: Identifying Angles


In the diagram of a triangle, several angles have been marked out.

Use the diagram to match the angles with their best description.

Match each term
A.

Linear pair

B.

Exterior angles

C.

Interior angles

D.

Vertical angles

Angles ∠2 and ∠4\angle{2} \text{ and } \angle{4}

Angles ∠6 and ∠3\angle{6} \text{ and } \angle{3}

Angles ∠3 and ∠5\angle{3} \text{ and } \angle{5}

Angles ∠2 and ∠3\angle{2} \text{ and } \angle{3}

Create a free account to get started

Unlock full course notes by signing up

  • Video lessons taught by top educators
  • Practice questions with guided solutions
  • Written review notes for reference
  • Expert answers anytime from course tutors

Using properties of Triangles


Illustration for practice question: Using properties of Triangles


Use the diagram and the given information to answer the questions.


1. What is the value of x?x?

2. What is the value of yy?


1. What is the value of x?x?



Create a free account to get started

Unlock full course notes by signing up

  • Video lessons taught by top educators
  • Practice questions with guided solutions
  • Written review notes for reference
  • Expert answers anytime from course tutors

Triangles and Sidewalks

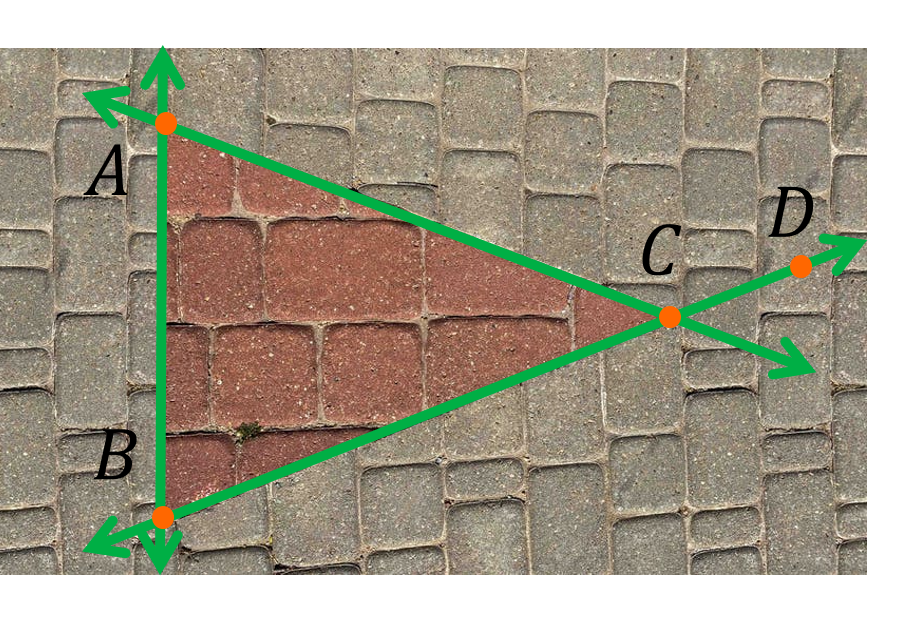

Illustration for practice question: Triangles and Sidewalks


While repairing a cracked sidewalk a triangular piece was cut out and replaced with a new one.

Use the diagram and the given information to answer the following questions.


Given that

  • m∠ACD=146∘m\angle{ACD} = 146^\circ
  • ∠CAB≅∠CBA\angle{CAB} \cong \angle{CBA}

1. What is the measure of angle ∠CAB\angle{CAB} ?


2. What is the measure of angle ∠ACB\angle{ACB} ?

1. What is the measure of angle ∠CAB\angle{CAB} ?
