VSEPR (Molecular Shapes)
6 Activities

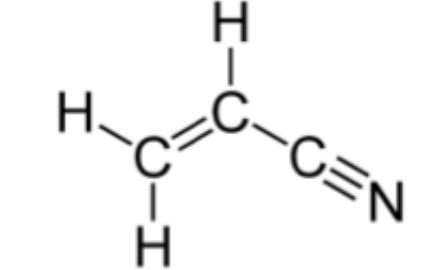

Next question concerns the molecule acrylonitrile, C
3
H
3
N, shown below.
The H-C-H an C-C-C bond angles in a molecule of acrylonitrile are closest to what pair of values
respectively?
109.5
o
,109.5
o
120
o
, 120
o
109.5
o
, 120
o
120
o
, 109.5
o
120
o
, 180
o
I don't know
Check Submission
