Basic Functions & Their Graphs

Linear Functions

f(x)=xf(x)=x
  • Slope-intercept form: y=mx+b\boxed{y=mx+b}
  • 'm' is the slope
  • 'b' is the y-intercept
  • Slope-point form: y=m(xx0)+y0\boxed{y=m(x-x_0)+y_0}
  • 'm' is the slope
  • (x0, y0) is a point on the line
  • General form: Ax + By + C=0\boxed{\text{A}x~+~\text{B}y~+~C=0}
  • 'A' must be greater than 0
  • Standard form: Ax + By=C\boxed{\text{A}x~+~\text{B}y=C}
  • 'A' must be greater than 0
Note: A, B, CR\text{A,~B,~C}\in\mathbb{R}

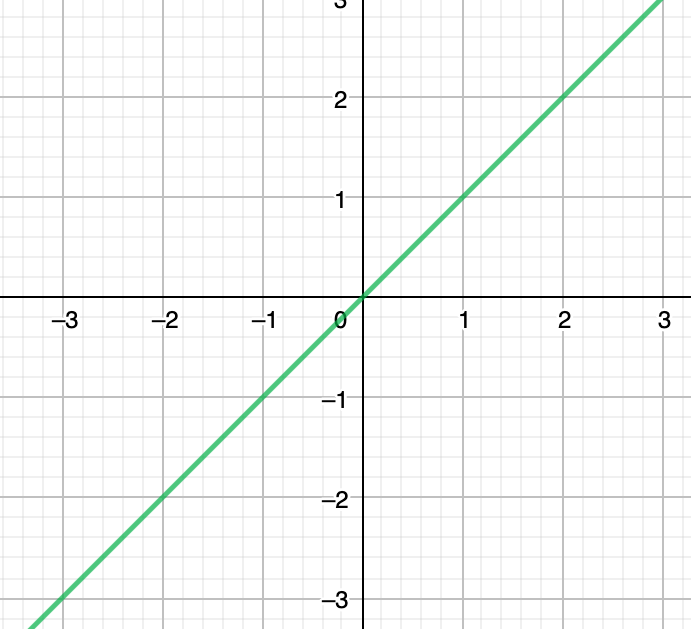

Example 1
f(x)=xf(x)=x

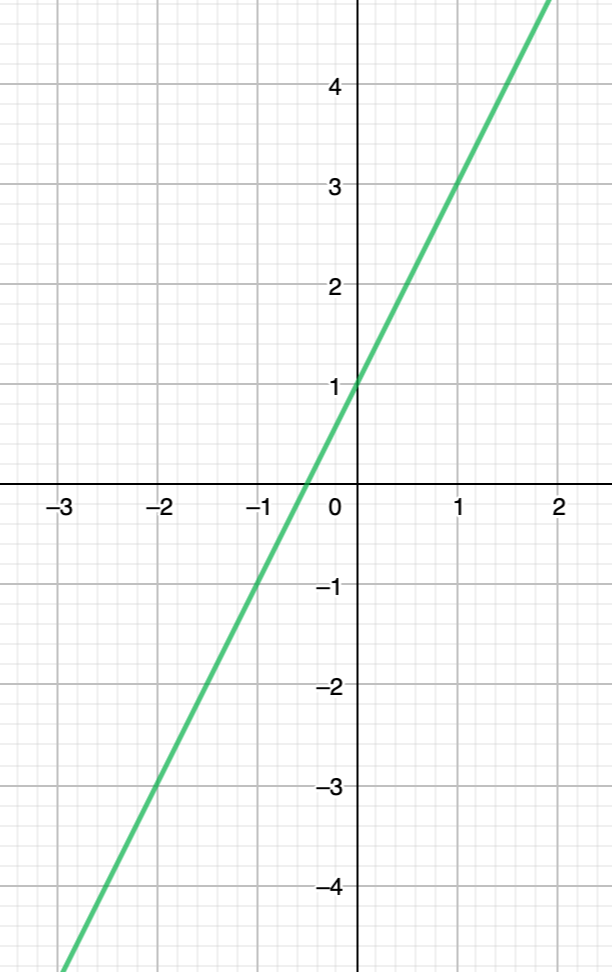

Example 2

f(x)=2x+1f(x)=2x+1


PAGE BREAK

Quadratic Functions

f(x)=x2f(x)=x^2
  • Vertex Form: y=a(xh)2+k\boxed{y=a(x-h)^2+k}
  • If a > 0, then y is a minimum
  • If a < o, then y is a maximum
  • (h, k) is the vertex
  • x = h is the axis of symmetry
  • Domain is (,)(-\infin,\infin)
  • Range is:
  • yk y\geq{k}~ if a > 0
  • yk y\leq{k}~ if a < 0

  • General Form: x2+ax+by=C\boxed{x^2+\text{a}x+\text{b}y=\text{C}}
  • Standard Form: y=ax2+bx+c\boxed{y=ax^2+bx+c}
Note: a, b, cR\text{a,~b,~c}\in\mathbb{R}


PAGE BREAK

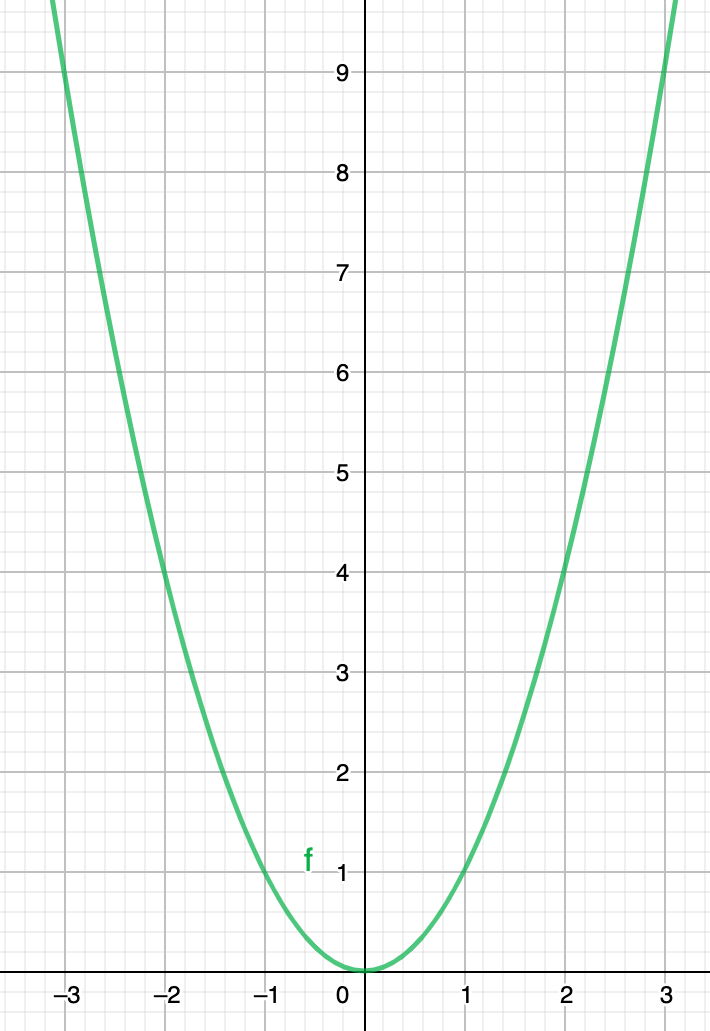

Example 1

f(x)=x2f(x)=x^2


PAGE BREAK

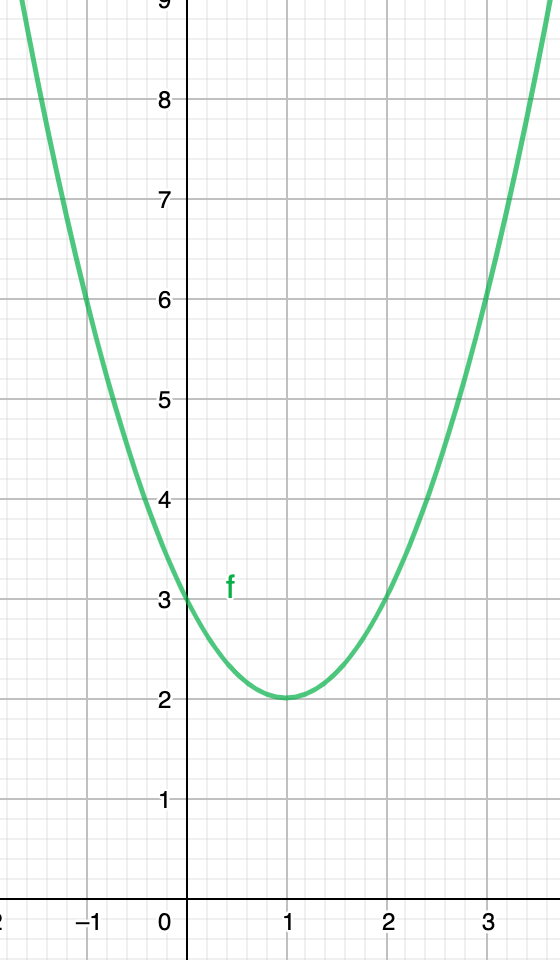

Example 2

f(x)=(x1)2+2f(x)=(x-1)^2+2

PAGE BREAK

Cubic Functions

f(x)=x3f(x)=x^3
  • Standard Form: y=ax3+bx2+cx+d\boxed{y=ax^3+bx^2+cx+d}
Note: a, b, c, dR\text{a,~b,~c,~d}\in\mathbb{R}

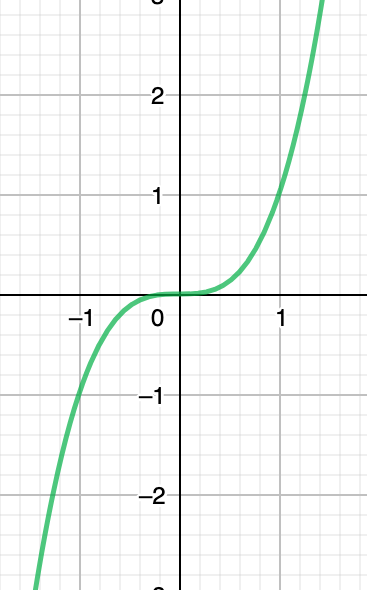

Example 1

f(x)=x3f(x)=x^3



PAGE BREAK

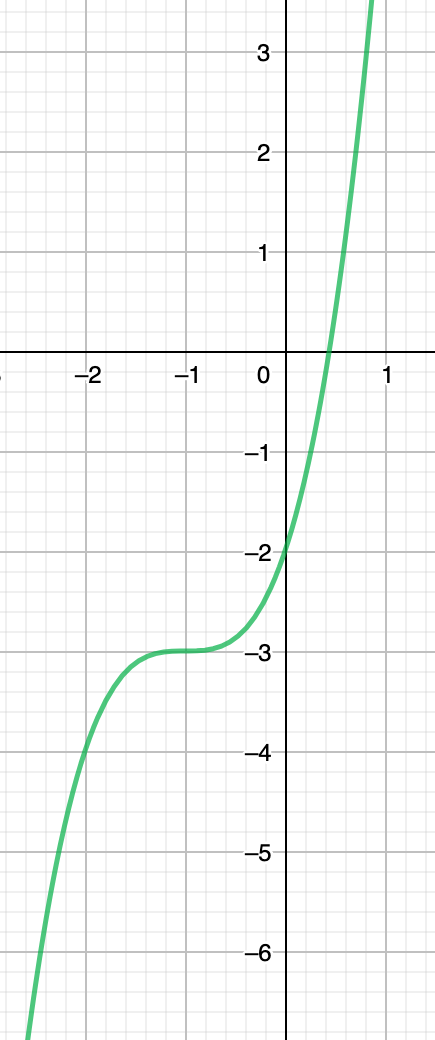

Example 2

f(x)=(x+1)33f(x)=(x+1)^3-3

PAGE BREAK

Reciprocal Functions

f(x)=1xf(x)=\frac{1}{x}
  • x0x\neq{0}
  • Vertical Asymptote at x = 0
  • Horizontal Asymptote at y = 0
  • Critical Points at (1, 1) & (-1, -1)

Example 1

f(x)=1xf(x)=\frac{1}{x}



PAGE BREAK

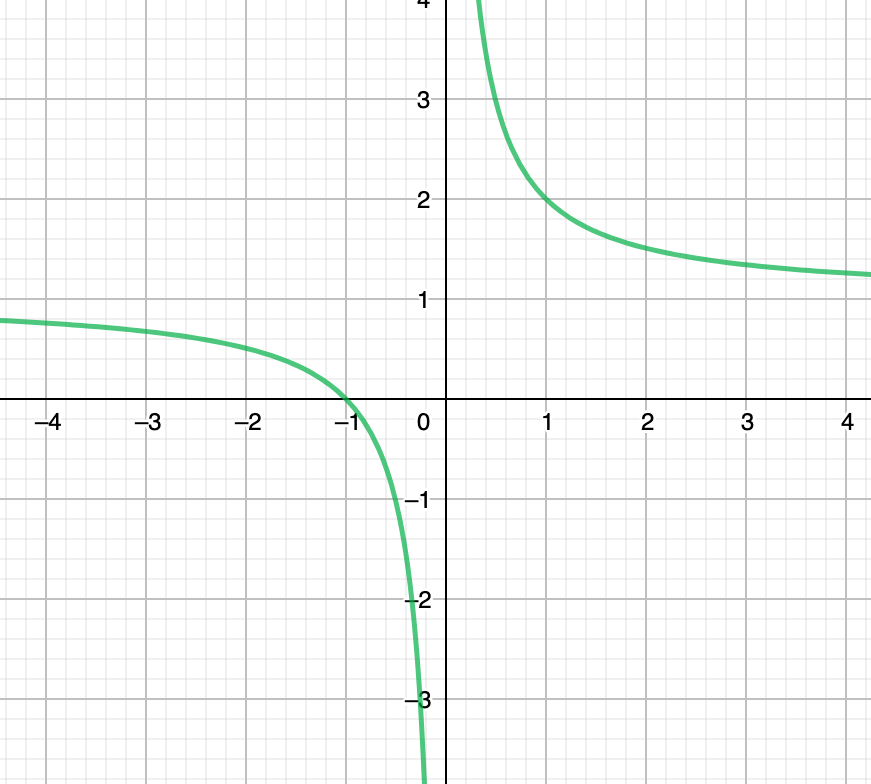

Example 2

f(x)=1x+1f(x)=\frac{1}{x}+1


PAGE BREAK

Radical Functions

f(x)=xf(x)=\sqrt{x}

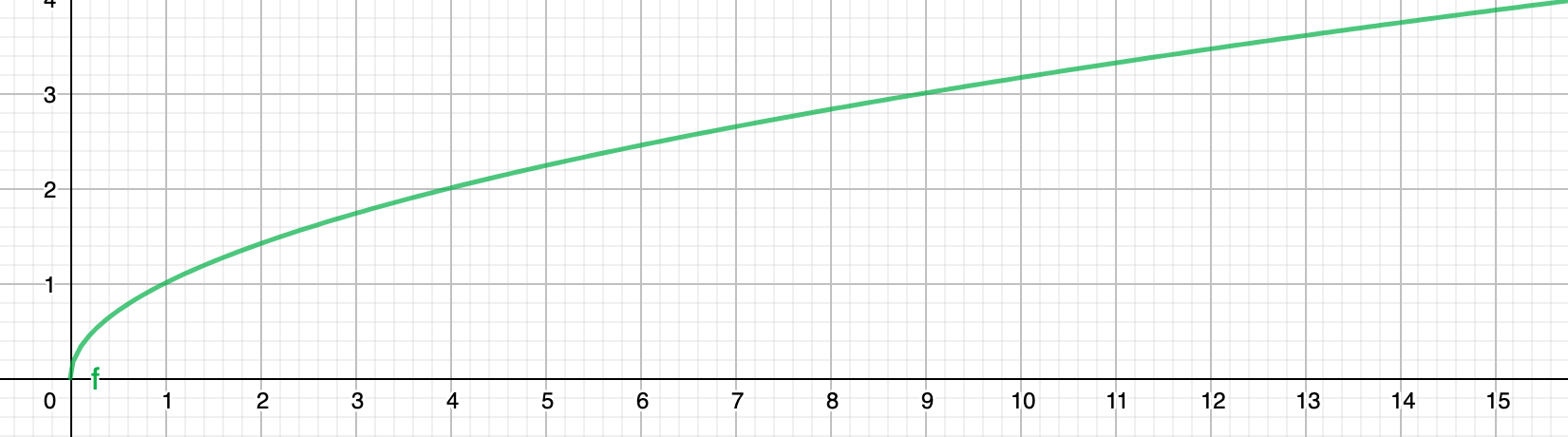

Example 1

f(x)=xf(x)=\sqrt{x}

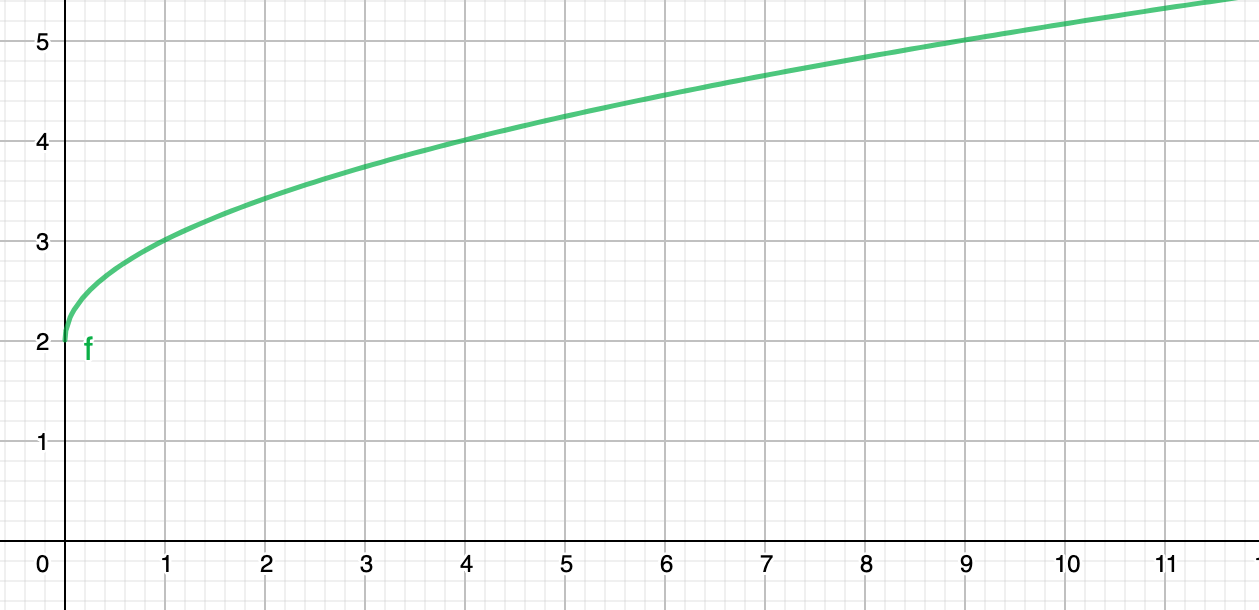

Example 2

f(x)=x+2f(x)=\sqrt{x}+2

PAGE BREAK

Exponential Functions

f(x)=(b)xf(x)=(b)^x
  • b0b\neq{0}
  • Horizontal asymptote at y = 0

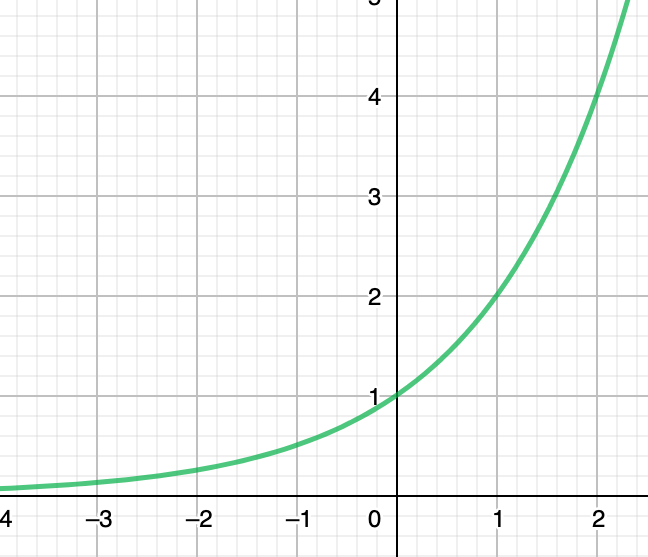

Example 1

f(x)=2xf(x)=2^x


Example 2

f(x)=2x+1f(x)=2^x+1


PAGE BREAK

Logarithmic Functions

f(x)=logbxf(x)=\log_b{x}
  • b0b\neq{0}
  • Vertical asymptote at x = 0

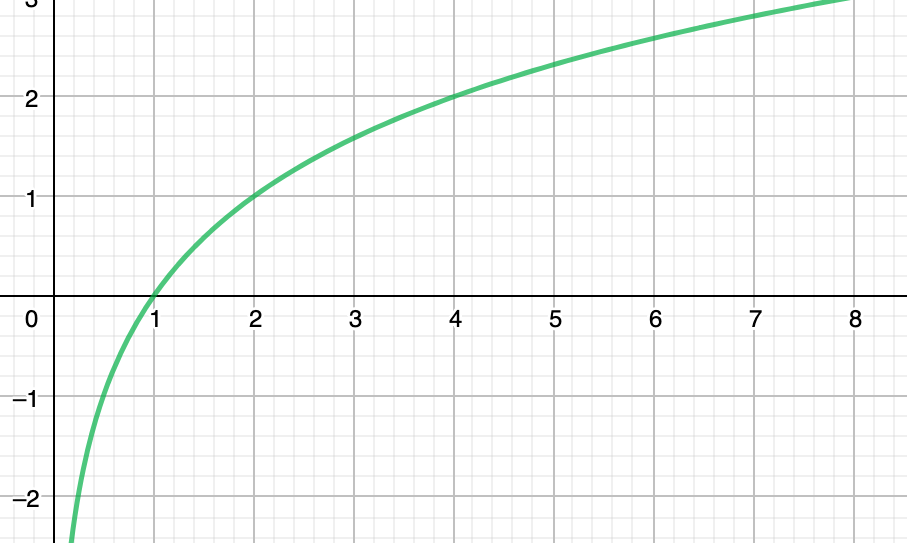

Example 1

f(x)=log2xf(x)=\log_2{x}


Example 2

f(x)=log2x+1f(x)=\log_2x+1
