Forces in Cartesian Vector Notation (Form) (2D)

Popular Courses

0:00 / 0:00

Any force vector can be written in the following form or notation, known as Cartesian Vector Form (CVF). We're using vector A in this example, but it could easily be F, or Q, or YYZ, or anything.

A⃗ =Axi +Ayj +Azk\vec{A}^{\,}=A_xi\ +A_yj\ +A_zkA=Ax​i +Ay​j +Az​k

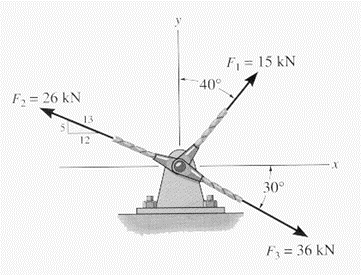

 Given the forces shown.
      a) Express each as a cartesian vector                      (<9.6,11.5>kN, <-24,10>kN, <31.2,-18>kN)
      b) Find resultant Fx and Fy                                        (Fx=16.8 kN, Fy=3.5 kN)
      c) Find the resultant magnitude & direction             (17.2 kN @ 11.8°)

a) F1 = 15sin(40°)i + 15cos(40°)j
          = [9.6i + 11.5j]kN

    F2 = -26(12/13)i + 26(5/13)j
          = [-24i + 10j]kN

    F3 = 36cos(30°)i - 36sin(30°)j
          = [31.2i - 18j]kN

b) Fxr = sum Fx's = 9.6 - 24 + 31.2 = 16.8 kN
    Fyr = sum Fy's = 11.5 + 10 - 18 = 3.5 kN

c) resultant magnitude:  Fr = sqrt (16.82 + 3.52) = 17.2 kN

    direction:    angle = tan-1(3.5/16.8) = 11.8°

                        angle is measured from the +x axis, the components put the resultant in the 1st quadrant

 Find horizontal and vertical components of a vector R shown in the Figure.

Rx=15   Ry=25.9R_x=15\ \ \ R_y=25.9Rx​=15   Ry​=25.9

Rx=25.9   Ry=15R_x=25.9\ \ \ R_y=15Rx​=25.9   Ry​=15

Rx=15   Ry=−25.9R_x=15\ \ \ R_y=-25.9Rx​=15   Ry​=−25.9

Rx=25.9   Ry=−15R_x=25.9\ \ \ R_y=-15Rx​=25.9   Ry​=−15

I don't know

Mark Yourself Question

Grab a piece of paper and try this problem yourself.
When you're done, check the "I have answered this question" box below.
View the solution and report whether you got it right or wrong.

Given the forces shown.
a) Express each as a cartesian vector
b) Find resultant Fx and Fy
c) Find the resultant magnitude & direction

I have answered this question
