Graphing Rational Functions

Steps for graphing a rational function f(x)=axn+bxn−1+...cxm+dxm−1+...f(x)=\displaystyle\frac{ax^n+bx^{n-1}+...}{cx^m+dx^{m-1}+...}:
  1. Factor, if necessary
  2. Find the xx-intercepts & yy-intercepts
  3. Find the vertical asymptotes
  4. Find the horizontal asymptotes
  5. Find the missing points/holes
  6. Use a table of signs to determine if the function, f(x)f(x), will be above or below the horizontal asymptote. Any vertical asymptotes & x-intercepts will be used to determine the behaviour of f(x)f(x)
  7. Plot the function using the information found in Steps 1 - 6.

PAGE BREAK
Example

Graph f(x)=4x−5x−2f(x)=\displaystyle\frac{4x-5}{x-2}, stating the domain and range.

Step 1.
Factor, if necessary.

Factoring will not be required since f(x)=4x−5x−2f(x)=\displaystyle\frac{4x-5}{x-2} is in simplest form already.


Step 2.
Find the x-intercepts & y-intercepts.

The x-intercepts are determined by allowing f(x)=0f(x)=0:

f(x)=4x−5x−2(0=4x−5x−2)×(x−2)0=4x−5∴ x=54\begin{array}{rcl} f(x)&=&\displaystyle\frac{4x-5}{x-2}\\\\ \Bigg(0&=&\displaystyle\frac{4x-5}{x-2}\Bigg)\times(x-2)\\\\ 0&=&4x-5\\\\ \therefore{}~x&=&\displaystyle\frac{5}{4} \end{array}

The y-intercepts are determined by allowing x=0x=0:

f(x)=4x−5x−2f(x)=4(0)−50−2∴ f(x)=52\begin{array}{rcl} f(x)&=&\displaystyle\frac{4x-5}{x-2}\\\\ f(x)&=&\displaystyle\frac{4(0)-5}{0-2}\\\\ \therefore{}~f(x)&=&\displaystyle\frac{5}{2} \end{array}


PAGE BREAK

Step 3.
Find the vertical asymptotes.

The vertical asymptotes can found by finding the zeros of the denominator. In other words, set the denominator to 00 and solve.

Let x−2=0x-2=0.

The vertical asymptote is x=2.x=2.



Step 4.
Find the horizontal asymptotes.

The degree of the polynomial in the numerator (n=1) (n=1)~ is equivalent to the degree of the polynomial in the denominator (m=1)(m=1).


Therefore, the horizontal asymptote for f(x)f(x) is the ratio of the leading coefficients y=41=4y=\frac{4}{1}=4.


Step 5.
Find the missing points/holes.

There were no terms eliminated. Therefore, there are no missing points/holes.


PAGE BREAK

Step 6.
Use a table of signs to determine if the function, f(x)\green{f(x)}, will be above or below the horizontal asymptote. Any vertical asymptotes & x-intercepts will be used to determine the behaviour of f(x).\green{f(x).}


01.534x−5−++x−2−−+f(x)+−+\begin{array}{c|c|c|} &0&1.5&3\\\hline\\ 4x-5&-&+&+\\\\\hline\\ x-2&-&-&+\\\\\hline\\ f(x)&+&-&+\\\\ \end{array} Pick values of xx around the vertical asymptotes and x-intercpets

The function lies above the horizontal asymptote in the interval (−∞,54) & (2,∞)(-\infin, \frac{5}{4})~\&~(2,\infin)

The function lies below the horizontal asymptote in the interval (54,2)(\frac{5}{4},2)

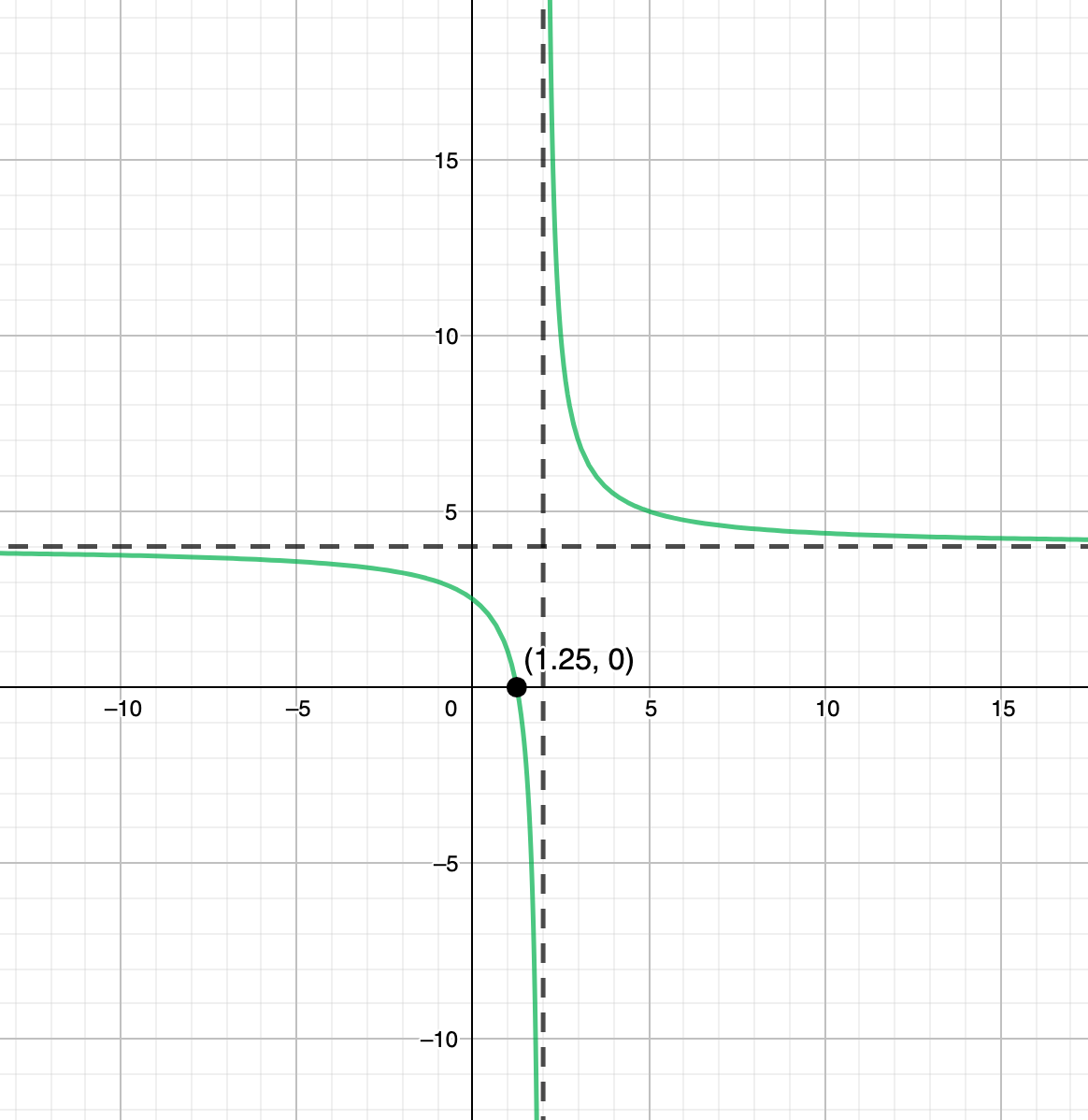

Step 7.
Plot the function using the information found in Steps 1 - 6.


Domain: (−∞,2) ∪ (2,∞)(-\infin,2)~\cup~(2,\infin)

Range: (−∞,4) ∪ (4,∞)(-\infin,4)~\cup~(4,\infin)
0:00 / 0:00

Example: Graphing Rational Functions

Sketch a graph of f(x)=xx2−5f(x)=\displaystyle\frac{x}{x^2-5}.

Step 1.
Factor, if necessary.

f(x)=xx2−5f(x)=x(x−5)(x+5)\begin{array}{rcl} f(x)&=&\displaystyle\frac{x}{x^2-5}\\\\ f(x)&=&\displaystyle\frac{x}{(x-\sqrt{5})(x+\sqrt{5})} \end{array}


Step 2.
Find the x-intercepts & y-intercepts.

The x-intercepts are determined by allowing f(x)=0f(x)=0:

f(x)=xx2−5(0=xx2−5)×(x2−5)0=x∴ x=0\begin{array}{rcl} f(x)&=&\displaystyle\frac{x}{x^2-5}\\\\ \Bigg(0&=&\displaystyle\frac{x}{x^2-5}\Bigg)\times(x^2-5)\\\\ 0&=&x\\\\ \therefore{}~x&=&0 \end{array}

The y-intercepts are determined by allowing x=0x=0:

f(x)=xx2−5f(x)=002−5∴ f(x)=0\begin{array}{rcl} f(x)&=&\displaystyle\frac{x}{x^2-5}\\\\ f(x)&=&\displaystyle\frac{0}{0^2-5}\\\\ \therefore{}~f(x)&=&0 \end{array}


PAGE BREAK

Step 3.
Find the vertical asymptotes.

The vertical asymptotes can found by finding the zeros of the denominator. In other words, set the denominator to 00 and solve.

Let (x−5)(x+5)=0(x-\sqrt{5})(x+\sqrt{5})=0.

The vertical asymptotes are x=±5x=\pm\sqrt{5}



Step 4.
Find the horizontal asymptotes.

The degree of the polynomial in the numerator (n=1) (n=1)~ is not equivalent to the degree of the polynomial in the denominator (m=2)(m=2).


Therefore, the horizontal asymptote for f(x)f(x) is the ratio of the leading coefficients y=0y=0.


Step 5.
Find the missing points/holes.

There were no terms eliminated. Therefore, there are no missing points/holes.


PAGE BREAK

Step 6.
Use a table of signs to determine if the function, f(x)\green{f(x)}, will be above or below the horizontal asymptote. Any vertical asymptotes & x-intercepts will be used to determine the behaviour of f(x).\green{f(x).}


−3−113x−−++x2−5+−−+f(x)−+−+\begin{array}{c|c|c|c|} &-3&-1&1&3\\\hline\\ x&-&-&+&+\\\\\hline\\ x^2-5&+&-&-&+\\\\\hline\\ f(x)&-&+&-&+\\\\ \end{array} Pick values of xx around the vertical asymptotes and x-intercpets

The function lies above the horizontal asymptote in the interval (−5,0) & (5,∞)(-\sqrt{5}, 0)~\&~(\sqrt{5},\infin)

The function lies below the horizontal asymptote in the interval (−∞,−5) & (0,5)(-\infin,-\sqrt{5})~\&~(0,\sqrt{5})

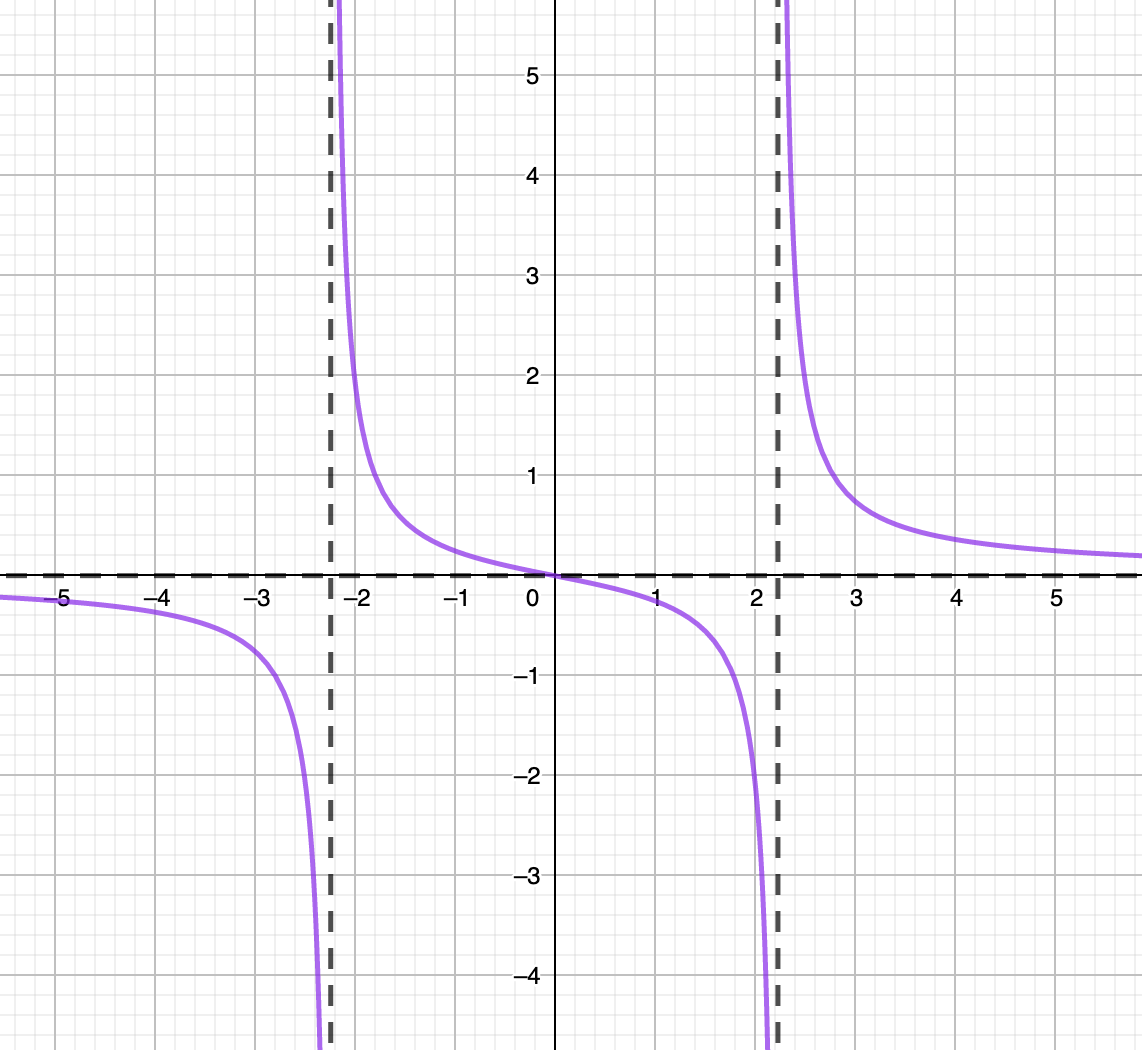

Step 7.
Plot the function using the information found in Steps 1 - 6.


Domain: (−∞,−5) ∪ (−5,5) ∪ (5,∞)(-\infin,-\sqrt{5})~\cup~(-\sqrt{5},\sqrt{5})~\cup~(\sqrt{5},\infin)

Range: (−∞,0) ∪ (0,∞)(-\infin,0)~\cup~(0,\infin)

0:00 / 0:00

Example: Graphing Rational Functions

Sketch a graph of f(x)=x−3−2x−8f(x)=\displaystyle\frac{x-3}{-2x-8}.

Step 1.
Factor, if necessary.

f(x)=x−3−2x−8f(x)=x−3−2(x+4)\begin{array}{rcl} f(x)&=&\displaystyle\frac{x-3}{-2x-8}\\\\ f(x)&=&\displaystyle\frac{x-3}{-2(x+4)} \end{array}


Step 2.
Find the x-intercepts & y-intercepts.

The x-intercepts are determined by allowing f(x)=0f(x)=0:

f(x)=x−3−2(x+4)(0=x−3−2(x+4))×(−2(x+4))0=x−3∴ x=3\begin{array}{rcl} f(x)&=&\displaystyle\frac{x-3}{-2(x+4)}\\\\ \Bigg(0&=&\displaystyle\frac{x-3}{-2(x+4)}\Bigg)\times(-2(x+4))\\\\ 0&=&x-3\\\\ \therefore{}~x&=&3 \end{array}

The y-intercepts are determined by allowing x=0x=0:

f(x)=x−3−2x−8f(x)=0−3−2(0+4)f(x)=−3−2(4)∴ f(x)=38\begin{array}{rcl} f(x)&=&\displaystyle\frac{x-3}{-2x-8}\\\\ f(x)&=&\displaystyle\frac{0-3}{-2(0+4)}\\\\ f(x)&=&\displaystyle\frac{-3}{-2(4)}\\\\ \therefore{}~f(x)&=&\displaystyle\frac{3}{8} \end{array}


PAGE BREAK

Step 3.
Find the vertical asymptotes.

The vertical asymptotes can found by finding the zeros of the denominator. In other words, set the denominator to 00 and solve.

Let (x+4)=0(x+4)=0.

The vertical asymptote is x=−4x=-4



Step 4.
Find the horizontal asymptotes.

The degree of the polynomial in the numerator (n=1) (n=1)~ is equivalent to the degree of the polynomial in the denominator (m=1)(m=1).


Therefore, the horizontal asymptote for f(x)f(x) is the ratio of the leading coefficients y=−12y=\displaystyle-\frac{1}{2}.


Step 5.
Find the missing points/holes.

There were no terms eliminated. Therefore, there are no missing points/holes.

PAGE BREAK


Step 6.
Use a table of signs to determine if the function, f(x)\green{f(x)}, will be above or below the horizontal asymptote. Any vertical asymptotes & x-intercepts will be used to determine the behaviour of f(x).\green{f(x).}


−504x−3−−+−2−−−x+4−++f(x)−+−\begin{array}{c|c|c|} &-5&0&4\\\hline\\ x-3&-&-&+\\\\\hline\\ -2&-&-&-\\\\\hline\\ x+4&-&+&+\\\\\hline\\ f(x)&-&+&-\\\\ \end{array} Pick values of xx around the vertical asymptotes and x-intercpets

The function lies above the horizontal asymptote in the interval (−4,3)(-4,3)

The function lies below the horizontal asymptote in the interval (−∞,−4) & (3,∞)(-\infin,-4)~\&~(3,\infin)

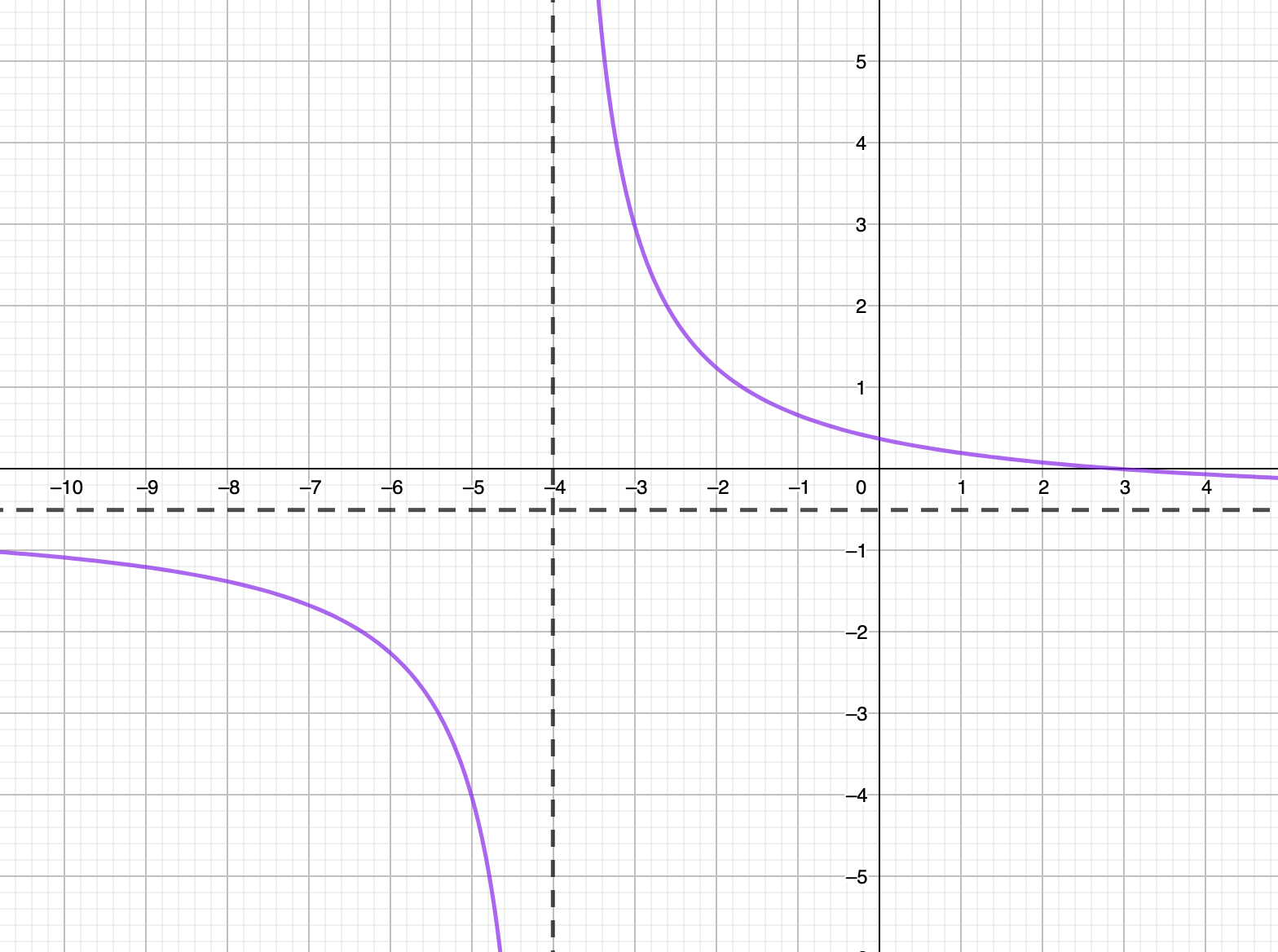

Step 7.
Plot the function using the information found in Steps 1 - 6.


Domain: (−∞,−4) ∪ (−4,∞)(-\infin,-4)~\cup~(-4,\infin)

Range: (−∞,−12) ∪ (−12,∞)\Big(-\infin,\displaystyle-\frac{1}{2}\Big)~\cup~\Big(\displaystyle-\frac{1}{2},\infin\Big)
0:00 / 0:00

Example: Graphing Rational Functions

Sketch a graph of f(x)=3x2+5x+22x−4f(x)=\displaystyle\frac{3x^2+5x+2}{2x-4}

Step 1.
Factor, if necessary.

f(x)=3x2+5x+22x−4f(x)=(3x+2)(x+1)2(x−2)\begin{array}{rcl} f(x)&=&\displaystyle\frac{3x^2+5x+2}{2x-4}\\\\ f(x)&=&\displaystyle\frac{(3x+2)(x+1)}{2(x-2)} \end{array}


Step 2.
Find the x-intercepts & y-intercepts.

The x-intercepts are determined by allowing f(x)=0f(x)=0:

f(x)=(3x+2)(x+1)2(x−2)(0=(3x+2)(x+1)2(x−2))×(2(x−2))0=(3x+2)(x+1)∴ x=−23, −1\begin{array}{rcl} f(x)&=&\displaystyle\frac{(3x+2)(x+1)}{2(x-2)}\\\\ \Bigg(0&=&\displaystyle\frac{(3x+2)(x+1)}{2(x-2)}\Bigg)\times(2(x-2))\\\\ 0&=&(3x+2)(x+1)\\\\ \therefore{}~x&=&-\displaystyle\frac{2}{3},~-1 \end{array}

The y-intercepts are determined by allowing x=0x=0:

f(x)=(3x+2)(x+1)2(x−2)f(x)=(3(0)+2)(0+1)2(0−2)f(x)=22(−2)∴ f(x)=−12\begin{array}{rcl} f(x)&=&\displaystyle\frac{(3x+2)(x+1)}{2(x-2)}\\\\ f(x)&=&\displaystyle\frac{(3(0)+2)(0+1)}{2(0-2)}\\\\ f(x)&=&\displaystyle\frac{2}{2(-2)}\\\\ \therefore{}~f(x)&=&\displaystyle-\frac{1}{2} \end{array}


PAGE BREAK

Step 3.
Find the vertical asymptotes.

The vertical asymptotes can found by finding the zeros of the denominator. In other words, set the denominator to 00 and solve.

Let (x−2)=0(x-2)=0.

The vertical asymptotes is x=2x=2



Step 4.
Find the horizontal (or oblique) asymptotes.

The degree of the polynomial in the numerator (n=2) (n=2)~ is not equivalent to the degree of the polynomial in the denominator (m=1)(m=1).


Therefore, there is an oblique asymptote.

Divide f(x)=3x2+5x+22x−4f(x)=\displaystyle\frac{3x^2+5x+2}{2x-4}

3522↓62231124\begin{array}{r|ccc} &3&5&2\\ 2&\downarrow&6&22\\\hline &3&11&24 \end{array}

Divide the quotient by 2:

(3x+11)÷2=3x2+112(3x+11)\div2=\displaystyle\frac{3x}{2}+\displaystyle\frac{11}{2}

The oblique asymptote is the quotient. So, y=3x2+112y=\displaystyle\frac{3x}{2}+\displaystyle\frac{11}{2}


Step 5.
Find the missing points/holes.

There were no terms eliminated. Therefore, there are no missing points/holes.


PAGE BREAK

Step 6.
Use a table of signs to determine if the function, f(x)\green{f(x)}, will be above or below the oblique asymptote. Any vertical asymptotes & x-intercepts will be used to determine the behaviour of f(x).\green{f(x).}


−2−0.75033x+2−−++x+1−−++2++++x−2−−−+f(x)−−−+\begin{array}{c|c|c|c|c} &-2&-0.75&0&3\\\hline\\ 3x+2&-&-&+&+\\\\\hline\\ x+1&-&-&+&+\\\\\hline\\ 2&+&+&+&+\\\\\hline\\ x-2&-&-&-&+\\\\\hline\\ f(x)&-&-&-&+\\\\ \end{array} Pick values of xx around the vertical asymptotes and x-intercepts

The function lies above the oblique asymptote in the interval (2,∞)(2,\infin)

The function lies below the oblique asymptote in the interval (−∞,2)(-\infin,2)


Step 7.
Plot the function using the information found in Steps 1 - 6.


Domain: (−∞,2) ∪ (2,∞)(-\infin,2)~\cup~(2,\infin)

Practice: Graphing Rational Functions

A rational function has the following properties:
  • A horizontal asymptote at y=0y=0.
  • Vertical asymptotes at x=−5,3x=-5, 3.
  • An x-intercept at x=0.8x=0.8
Which rational function best describes the above properties?

Practice: Graphing Rational Functions

Sketch a graph of f(x)=x+4−2x−6f(x)=\displaystyle\frac{x+4}{-2x-6}, stating all asymptotes, x-intercepts, missing points, and positive & negative intervals.

Practice: Graphing Rational Functions

Find a rational function of the form f(x)=ax+bcx+df(x)=\displaystyle\frac{ax+b}{cx+d} that describes the following:

  • Vertical asymptote at x=5x=5
  • Horizontal asymptote at y=3y=3
  • X-intercept at x=−25x=-\displaystyle\frac{2}{5}

Practice: Graphing Rational Functions

Write a rational function with the following properties:
  • An oblique asymptote at y=x+4y=x+4
  • A vertical asymptote at x=5x=5
  • One of the x-intercepts is at x=2x=2
Extra Practice
Rational Functions
Let f(x)=x2+5x+6x−4f(x)=\dfrac{x^2+5x+6}{x-4} be a rational function.
Graphing Rational Functions
Practice: Graphing Rational Functions
Write a rational function with the following properties:
An oblique asymptote at y=−3x+1y=-3x+1
Graphing Rational Functions
Practice: Graphing Rational Functions
Write a rational function with the following properties:
An oblique asymptote at y=2x−7y=2x-7
Graphing Rational Functions
Practice: Graphing Rational Functions
Find a rational function of the form f(x)=ax+bcx+df(x)=\displaystyle\frac{ax+b}{cx+d} that describes the following:
Vertical asymptote at x=−1x=-1
Graphing Rational Functions
Practice: Graphing Rational Functions
Find a rational function of the form f(x)=ax+bcx+df(x)=\displaystyle\frac{ax+b}{cx+d} that describes the following:
Vertical asymptote at x=−2x=-2
Graphing Rational Functions
Practice: Graphing Rational Functions
Sketch a graph of f(x)=x2−25x+5f(x)=\dfrac{x^2-25}{x+5}, finding all asymptotes, x-intercepts, missing points, and positive & negative intervals.
Graphing Rational Functions
Practice: Graphing Rational Functions
Sketch a graph of f(x)=−x+9x+3f(x)=\dfrac{-x+9}{x+3}, finding all asymptotes, intercepts, missing points, and positive & negative intervals.
Rational Functions
Practice: Rational Functions
Match the rational function with the correct sketch of its graph.
Rational Functions
Practice: Rational Functions
Match the rational function with the correct sketch of its graph.
