Intro to Equations of Lines

A line in R2R^2 or R3R^3 is actually just a collection of points that follow a certain rule, this rule is called the equation of the line.

Image illustrating Intro to Equations of Lines


We need to know how to

  1. write the equation of the line in various forms, given specific information about the line
  2. convert between different forms of the equation of a line

Lines in R2

Slope y-intercept Equationy=mx+bVector Equationr⃗=r0⃗+tm⃗Parametric Equationsx=x0+mxty=y0+mytSymmetric Equationx−x0mx=y−y0myNormal Equation(r⃗−r0⃗)⋅n⃗=0Cartesian (a.k.a. Scalar) EquationAx+By+C=0\displaystyle \begin{array}{|c|c|} \hline\\ \text{\textcolor{orange}{Slope y-intercept Equation}}&y=mx+b\\ \\\hline\\ \text{\textcolor{orange}{Vector Equation}}&\vec r=\vec {r_0}+t\vec m\\ \\\hline\\ \text{\textcolor{orange}{Parametric Equations}}&\begin{array}{c} x=x_0+m_xt\\y=y_0+m_yt\end{array}\\ \\\hline\\ \text{\textcolor{orange}{Symmetric Equation}}&\displaystyle \frac{x-x_0}{m_x}=\frac{y-y_0}{m_y}\\ \\\hline\\ \text{\textcolor{orange}{Normal Equation}}&(\vec r-\vec{r_0})\cdot\vec n=0\\ \\\hline\\ \text{\textcolor{orange}{Cartesian (a.k.a. Scalar) Equation}}&Ax+By+C=0\\ \\\hline \end{array}

Lines in R3

Vector Equationr⃗=r0⃗+tm⃗Parametric Equationsx=x0+mxty=y0+mytz=z0+mztSymmetric Equationx−x0mx=y−y0my=z−z0mz\displaystyle \begin{array}{|c|c|} \hline\\ \text{\textcolor{orange}{Vector Equation}}&\vec r=\vec {r_0}+t\vec m\\ \\\hline\\ \text{\textcolor{orange}{Parametric Equations}}&\begin{array}{c} x=x_0+m_xt\\y=y_0+m_yt\\z=z_0+m_zt\end{array}\\ \\\hline\\ \text{\textcolor{orange}{Symmetric Equation}}&\displaystyle \frac{x-x_0}{m_x}=\frac{y-y_0}{m_y}=\frac{z-z_0}{m_z}\\ \\\hline \end{array}

Create a free account to get started

Unlock full course notes by signing up

  • Video lessons taught by top educators
  • Practice questions with guided solutions
  • Written review notes for reference
  • Expert answers anytime from course tutors

Vector, Parametric & Symmetric Equations in R2

Image illustrating Vector, Parametric & Symmetric Equations in $R^2$ & $R^3$

For any line LL in R2R^2, as long as we know one point (x0, y0)(x_0,\ y_0) on the line and a vector m⃗=[mx,my]\vec m=[m_x, m_y] that is parallel to the line, we can define the equation of the line.


Slope y-intercept Equation

y−y0=mymx(x−x0)\boxed{y-y_0=\frac{m_y}{m_x}\left(x-x_0\right)} or y=mymxx+(y0−mymxx0)\boxed{y=\frac{m_y}{m_x}x+\left(y_0-\frac{m_y}{m_x}x_0\right)}


Vector Equation

r→=r→0+tm→\boxed{\overrightarrow r=\overrightarrow r_0+t\overrightarrow m} or [x, y]=[x0, y0]+t[mx, my]\boxed{\left[x,\ y\right]=\left[x_0,\ y_0\right]+t\left[m_x,\ m_y\right]}

  • r→=[x, y]\overrightarrow{r}=[x,\ y] represents the position vector from the original to any point (x, y)(x,\ y) on the line LL
  • r0→=[x0, y0]\overrightarrow{r_0}=[x_0,\ y_0] represents the position vector of a known point on the line LL
  • tt is a parameter that can take on any real number (t∈Rt\in R)

Parametric Equations

x=x0+mxty=y0+myt\boxed{\begin{array}{c} x=x_0+m_xt\\ y=y_0+m_yt \end{array}}


Symmetric Equation

x−x0mx=y−y0my\boxed{\displaystyle \frac{x-x_0}{m_x}=\frac{y-y_0}{m_y}}


"Switch & Flip" Tip: If [a, b]\left[a,\ b\right] is a vector perpendicular to the line, then [−b, a]\left[-b,\ a\right] and [b, −a]\left[b,\ -a\right] are vectors parallel to the line.


Vector & Parametric Equations in R3

Similar to lines in R2R^2, any Line LL in R3R^3 can be defined using a vector equation or parametric equations.


Vector Equation

r→=r0→+tm→\boxed{\overrightarrow{r}=\overrightarrow{r_0}+t\overrightarrow{m}} or [x, y, z]=[x0, y0, z0]+t[mx, my, mz]\boxed{\left[x,\ y,\ z\right]=\left[x_0,\ y_0,\ z_0\right]+t\left[m_x,\ m_y,\ m_z\right]}


Parametric Equations

x=x0+mxty=y0+mytz=z0+mzt\boxed{\begin{array}{c} x=x_0+m_xt\\ y=y_0+m_yt\\ z=z_0+m_zt \end{array}}


Symmetric Equation

x−x0mx=y−y0my=z−z0mz\boxed{\displaystyle \frac{x-x_0}{m_x}=\frac{y-y_0}{m_y}=\frac{z-z_0}{m_z}}

Create a free account to get started

Unlock full course notes by signing up

  • Video lessons taught by top educators
  • Practice questions with guided solutions
  • Written review notes for reference
  • Expert answers anytime from course tutors

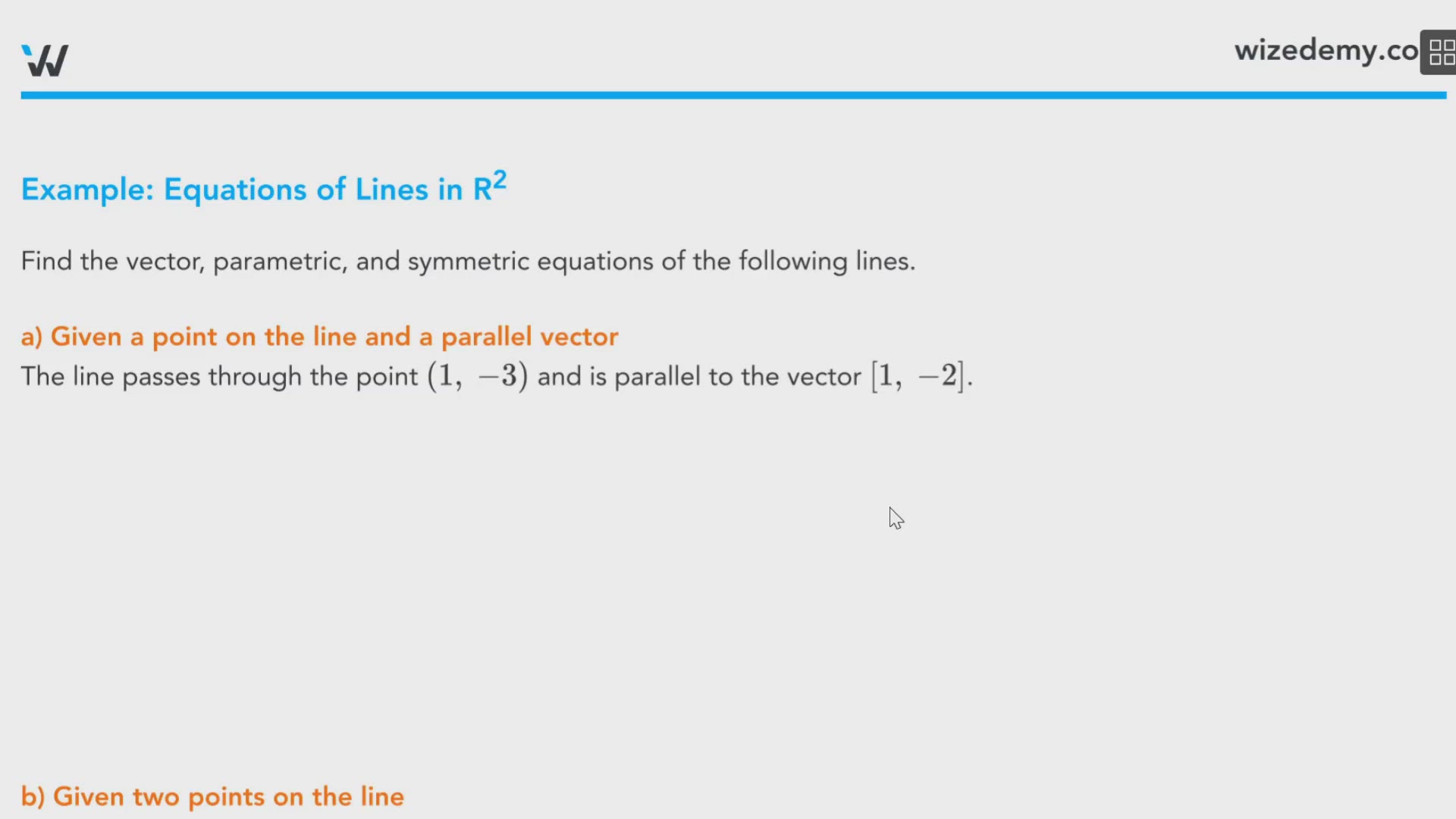

Example: Equations of Lines in R2

Find the vector, parametric, and symmetric equations of the following lines.


a) Given a point on the line and a parallel vector

The line passes through the point (1, −3)\left(1,\ -3\right) and is parallel to the vector [1, −2]\left[1,\ -2\right].


Position vector of the point: [1, −3]\left[1,\ -3\right]

Direction vector of the line: [1, −2]\left[1,\ -2\right] (or any scalar multiple)

Vector equation: r⃗=[1, −3]+t[ 1, −2]\vec{r}=\left[1,\ -3\right]+t\left[\ 1,\ -2\right]

Parametric equations: x=1+ty=−3−2t\begin{array}{l} x=1+t\\ y=-3-2t \end{array}

Symmetric equation: x−11=y+3−2\frac{x-1}{1}=\frac{y+3}{-2}



b) Given two points on the line

The line passes through the points (1, −3)\left(1,\ -3\right) and (0, 4)\left(0,\ 4\right).


Position vector of the point: [1, −3]\left[1,\ -3\right] or [0, 4]\left[0,\ 4\right]

Direction vector of the line: [1, −3]−[0, 4]=[1, −7]\left[1,\ -3\right]-\left[0,\ 4\right]=\left[1,\ -7\right] (or any scalar multiple)

Vector equation: r⃗=[1, −3]+t[ 1, −7]\vec{r}=\left[1,\ -3\right]+t\left[\ 1,\ -7\right]

Parametric equations: x=1+ty=−3−7t\begin{array}{l} x=1+t\\ y=-3-7t \end{array}

Symmetric equation: x−11=y+3−7\frac{x-1}{1}=\frac{y+3}{-7}




c) Given a point on the line and a parallel line

The line passes through the point (1, −3)\left(1,\ -3\right) and is parallel to the line r⃗=[2, 5]+t[−2, 1]\vec{r}=\left[2,\ 5\right]+t\left[-2,\ 1\right].


Position vector of the point: [1, −3]\left[1,\ -3\right]

Direction vector of the line: [−2, 1]\left[-2,\ 1\right] (or any scalar multiple)

Vector equation: r⃗=[1, −3]+t[ −2, 1]\vec{r}=\left[1,\ -3\right]+t\left[\ -2,\ 1\right]

Parametric equations: x=1−2ty=−3+t\begin{array}{l} x=1-2t\\ y=-3+t \end{array}

Symmetric equation: x−1−2=y+31\frac{x-1}{-2}=\frac{y+3}{1}



d) Given a point on the line and a perpendicular line

The line passes through the point (1, −3)\left(1,\ -3\right) and is perpendicular to the line r⃗=[2, 5]+t[−2, 1]\vec{r}=\left[2,\ 5\right]+t\left[-2,\ 1\right].


Position vector of the point: [1, −3]\left[1,\ -3\right]

Direction vector of the line: [1, 2]\left[1,\ 2\right] (or any scalar multiple)

Vector equation: r⃗=[1, −3]+t[ 1, 2]\vec{r}=\left[1,\ -3\right]+t\left[\ 1,\ 2\right]

Parametric equations: x=1+ty=−3+2t\begin{array}{l} x=1+t\\ y=-3+2t \end{array}

Symmetric equation: x−11=y+32\frac{x-1}{1}=\frac{y+3}{2}

Practice: Equation of Lines in R2

A line LL passes through the point (−3, −1)\left(-3,\ -1\right) and is perpendicular to the line r⃗=[−4, 5]+t[3, −6]\vec{r}=\left[-4,\ 5\right]+t\left[3,\ -6\right].

Which of the following is a direction vector parallel to LL?


(Select all that apply)

Choose an answer

Create a free account to get started

Unlock full course notes by signing up

  • Video lessons taught by top educators
  • Practice questions with guided solutions
  • Written review notes for reference
  • Expert answers anytime from course tutors

Create a free account to get started

Unlock full course notes by signing up

  • Video lessons taught by top educators
  • Practice questions with guided solutions
  • Written review notes for reference
  • Expert answers anytime from course tutors

Example: Converting Equations of Lines in R2

a) Convert the equation y=−2x+3y=-2x+3 into a vector equation, parametric equations, and symmetric equation.


The slope is −2=−21 → rise=−2, run=1-2=-\frac{2}{1}\ \to\ rise=-2,\ run=1. Meaning that the direction vector is m⃗=[1, −2]\vec{m}=\left[1,\ -2\right] (or any scalar multiple).

If we let x=0x=0, we can solve for yy: y=−2(0)+3=3y=-2\left(0\right)+3=3. Meaing that the position vector of one point on the line is [0, 3]\left[0,\ 3\right].

Vector equation: r⃗=[0, 3]+[1,−2]\vec{r}=\left[0,\ 3\right]+\left[1,-2\right]

Parametric equations: x=ty=3−2t\begin{array}{l} x=t\\ y=3-2t \end{array}

Symmetric equation: x−01=y−3−2\frac{x-0}{1}=\frac{y-3}{-2}





b) Convert the equation r⃗=[1, 2]+t[3, 4]\vec{r}=\left[1,\ 2\right]+t\left[3,\ 4\right] into a slope y-intercept equation.


Method 1

The slope is riserun=43\frac{rise}{run}=\frac{4}{3}. Meaing that m=43m=\frac{4}{3}.

A point on the line is (x0, y0)=(1, 2)\left(x_0,\ y_0\right)=\left(1,\ 2\right).

Therefore, the slope y-intercept equation is y−2=43(x−1) → y=43x+23y-2=\frac{4}{3}\left(x-1\right)\ \to\ y=\frac{4}{3}x+\frac{2}{3}


Method 2

First write out the symmetric equation of the line: x−13=y−24\frac{x-1}{3}=\frac{y-2}{4}

Then, solve for yy:

4(x−1)=3(y−2)4\left(x-1\right)=3\left(y-2\right)

4x−4=3y−64x-4=3y-6

4x+2=3y4x+2=3y

4x+23=y\frac{4x+2}{3}=y

y=43x+23y=\frac{4}{3}x+\frac{2}{3}

Practice: Converting Equations of Lines in R2 & R3

Match the following vector equations with their identical parametric, symmetric, or slope y-intercept equations.

Match each term
A.

x=1y=2+tz=3−5t\begin{array}{l} x=1\\ y=2+t\\ z=3-5t \end{array}

B.

x=3−ty=−4+2t\begin{array}{l} x=3-t\\ y=-4+2t \end{array}

C.

x=−1+4ty=2+3t\begin{array}{l} x=-1+4t\\ y=2+3t \end{array}

D.

x−13=y−24\displaystyle \frac{x-1}{3}=\frac{y-2}{4}

E.

y=−2x+10y=-2x+10

F.

x=−1+3ty=2−4t\begin{array}{l} x=-1+3t\\ y=2-4t \end{array}

G.

x−3=y−42\displaystyle x-3=\frac{y-4}{2}

H.

x=y−12=z+53\displaystyle x=\frac{y-1}{2}=\frac{z+5}{3}

[3, −4]+t[−1, 2]\left[3,\ -4\right]+t\left[-1,\ 2\right]

[−1, 2]+t[3, −4]\left[-1,\ 2\right]+t\left[3,\ -4\right]

[0, 1, −5]+t[1, 2, 3][0,\ 1,\ -5]+t\left[1,\ 2,\ 3\right]

[1, 2, 3]+t[0, 1, −5]\left[1,\ 2,\ 3\right]+t\left[0,\ 1,\ -5\right]

[3, 4]+t[1, 2]\left[3,\ 4\right]+t\left[1,\ 2\right]

[−1, 2]+t[4, 3]\left[-1,\ 2\right]+t\left[4,\ 3\right]

[3, 4]+t[−1, 2]\left[3,\ 4\right]+t\left[-1,\ 2\right]

[1, 2]+t[3, 4]\left[1,\ 2\right]+t\left[3,\ 4\right]

Create a free account to get started

Unlock full course notes by signing up

  • Video lessons taught by top educators
  • Practice questions with guided solutions
  • Written review notes for reference
  • Expert answers anytime from course tutors

Create a free account to get started

Unlock full course notes by signing up

  • Video lessons taught by top educators
  • Practice questions with guided solutions
  • Written review notes for reference
  • Expert answers anytime from course tutors

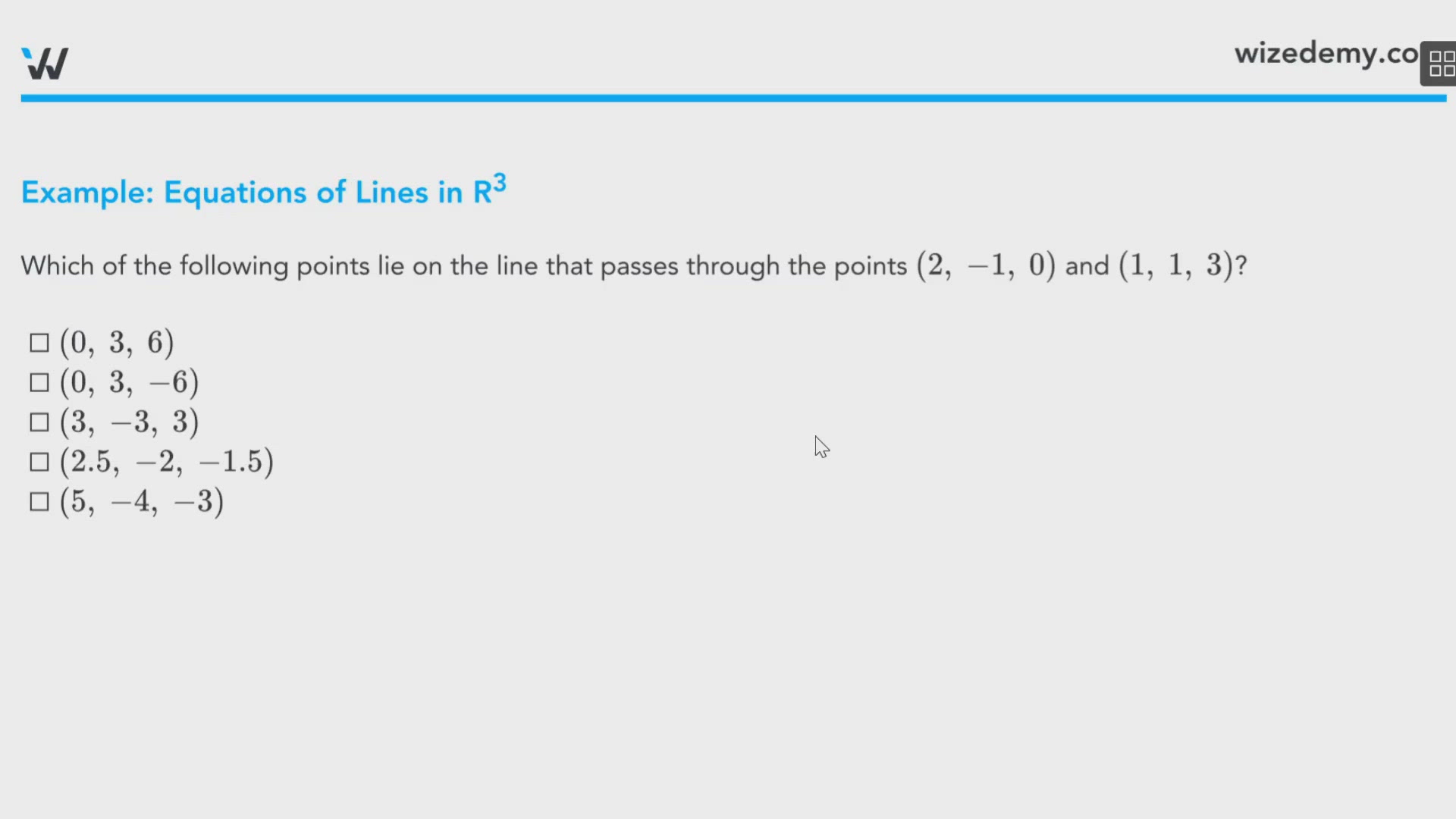

Example: Equations of Lines in R3

Which of the following points lie on the line that passes through the points (2, −1, 0)\left(2,\ -1,\ 0\right) and (1, 1, 3)\left(1,\ 1,\ 3\right)?


☐ (0, 3, 6)\left(0,\ 3,\ 6\right)

☐ (0, 3, −6)\left(0,\ 3,\ -6\right)

☐ (3, −3, 3)\left(3,\ -3,\ 3\right)

☐ (2.5, −2, −1.5)\left(2.5,\ -2,\ -1.5\right)

☐ (5, −4, −3)\left(5,\ -4,\ -3\right)


The direction vector parallel to the line is [2, −1, 0]−[1, 1, 3]=[1, −2, −3]\left[2,\ -1,\ 0\right]-\left[1,\ 1,\ 3\right]=\left[1,\ -2,\ -3\right] (or any scalar multiple of this)


The vector equation of the line is r⃗=[2, −1, 0]+t[1, −2, −3]\vec{r}=\left[2,\ -1,\ 0\right]+t\left[1,\ -2,\ -3\right] (you could have used the position vector of the other point as well).


So, the parametric equations of the line are x=2+ty=−1−2tz=−3t\begin{array}{l} x=2+t\\ y=-1-2t\\ z=-3t \end{array}.


Point (0, 3, 6):

0=2+t  → =−20=2+t\ \ \to\ =-2

3=−1−2t → t=−23=-1-2t\ \to\ t=-2

6=−3t → t=−26=-3t\ \to\ t=-2

Since the parameter tt is the same for each of these parametric equations, the point (0, 3, 6) is on the line.


Point (0, 3, -6):

Since the xx and yy coordinates are the same as the point above while the zz coordinate is different, we know that this point cannot be on the line. Alternatively, we can show this by solving for the parameter tt.


Point (3, -3, 3):

3=2+t → t=13=2+t\ \to\ t=1

−3=−1−2t → t=1-3=-1-2t\ \to\ t=1

3=−3t → t=−13=-3t\ \to\ t=-1

Since the parameter tt is not the same for all these parametric equations, the point (3, -3, 3) is not on the line.


Point (2.5, -2, -1.5):

2.5=2+t → t=0.52.5=2+t\ \to\ t=0.5

−2=−1−2t → t=0.5-2=-1-2t\ \to\ t=0.5

−1.5=−3t → t=0.5-1.5=-3t\ \to\ t=0.5

Since the paramter tt is the same for each of these parametric equations, the point (2.5, -2, -1.5) is on the line.


Point (5, -4, -3):

Although this point is a scalar multiple of the point directly before this one, don't let that trick you!

5=2+t → t=35=2+t\ \to\ t=3

−4=−1−2t → t=1.5-4=-1-2t\ \to\ t=1.5

Since the parameter tt is not the same for all these parametric equations, the point (5, -4, -3) is not on the line.


Alternatively

We could substitute the x, y, zx,\ y,\ z values from the given points into the symmetric equation x−21=y−(−1)−2=z−0−3\displaystyle \frac{x-2}{1}=\frac{y-\left(-1\right)}{-2}=\frac{z-0}{-3}, if all 3 parts of the equation equal, then the given point is on the line. Otherwise, the point is not on the line.

Create a free account to get started

Unlock full course notes by signing up

  • Video lessons taught by top educators
  • Practice questions with guided solutions
  • Written review notes for reference
  • Expert answers anytime from course tutors

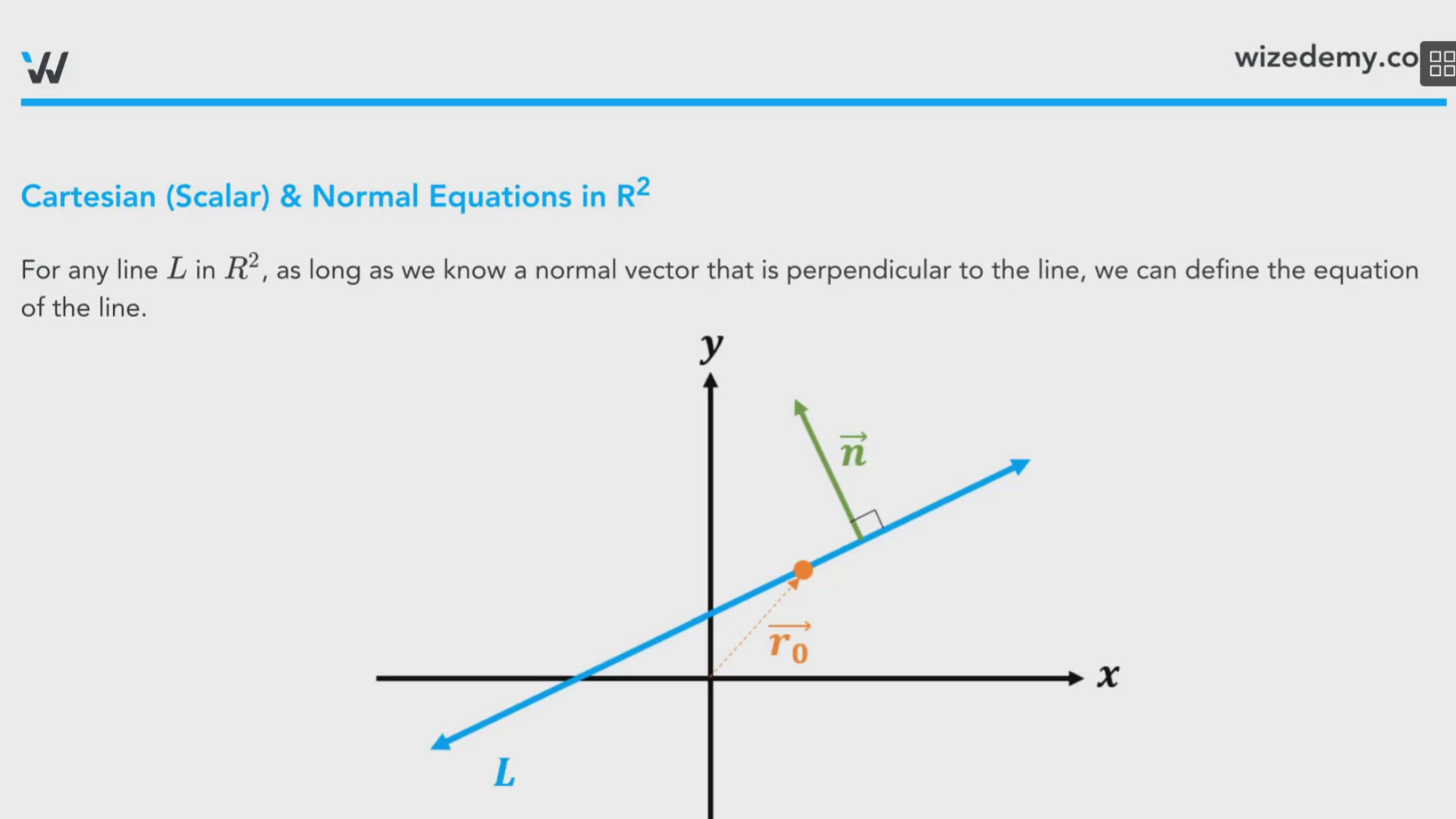

Cartesian (Scalar) & Normal Equations in R2

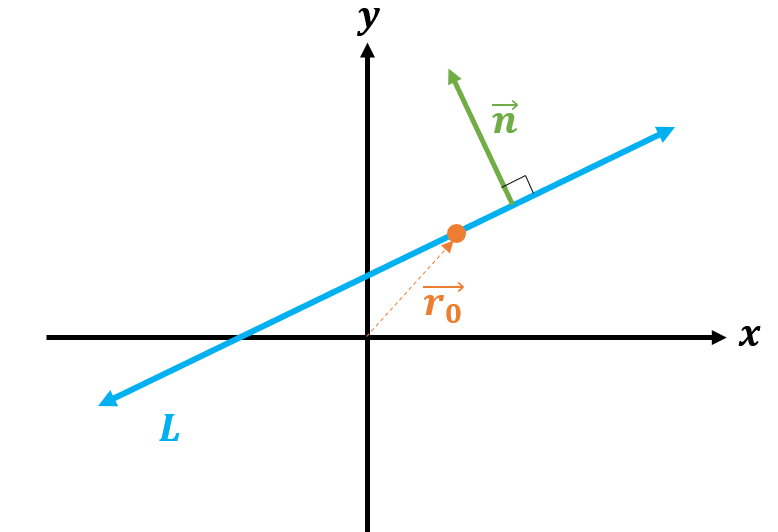

For any line LL in R2R^2, as long as we know a normal vector that is perpendicular to the line, we can define the equation of the line.

Image illustrating Cartesian (Scalar) & Normal Equations in $R^2$


Normal Equation

(r→−r0→)⋅n→=0\boxed{\left(\overrightarrow r-\overrightarrow{r_0}\right)\cdot\overrightarrow{n}=0}

  • r→=[x, y]\overrightarrow{r}=[x,\ y] represents the position vector from the original to any point (x, y)(x,\ y) on the line LL
  • r0→=[x0, y0]\overrightarrow{r_0}=[x_0,\ y_0] represents the position vector of a known point on the line LL
  • n→=[A, B]\overrightarrow{n}=\left[A,\ B\right] represents the normal vector that is perpendicular to the line LL


Cartesian (a.k.a. Scalar) Equation

Ax+By+C=0\boxed{Ax+By+C=0}

  • n→=[A,B]\overrightarrow{n}=[A,B] represents the normal vector that is perpendicular to the line LL
  • C=−[x0, y0]⋅[A, B]C=-[x_0,\ y_0]\cdot[A,\ B] where [x0, y0][x_0,\ y_0] represents the position vector of a known point on the line LL


How About in R3?

Can we define a Normal or Cartesian Equation of a line in R3R^3?

A line in R3R^3 has more than 1 normal vector, it actually has infinitely many normal vectors. So, we cannot define a line in R3R^3 by a normal vector of the line and a known point on the line.


In fact, a normal vector and a known point defines an equation of a plane in R3R^3!

Create a free account to get started

Unlock full course notes by signing up

  • Video lessons taught by top educators
  • Practice questions with guided solutions
  • Written review notes for reference
  • Expert answers anytime from course tutors

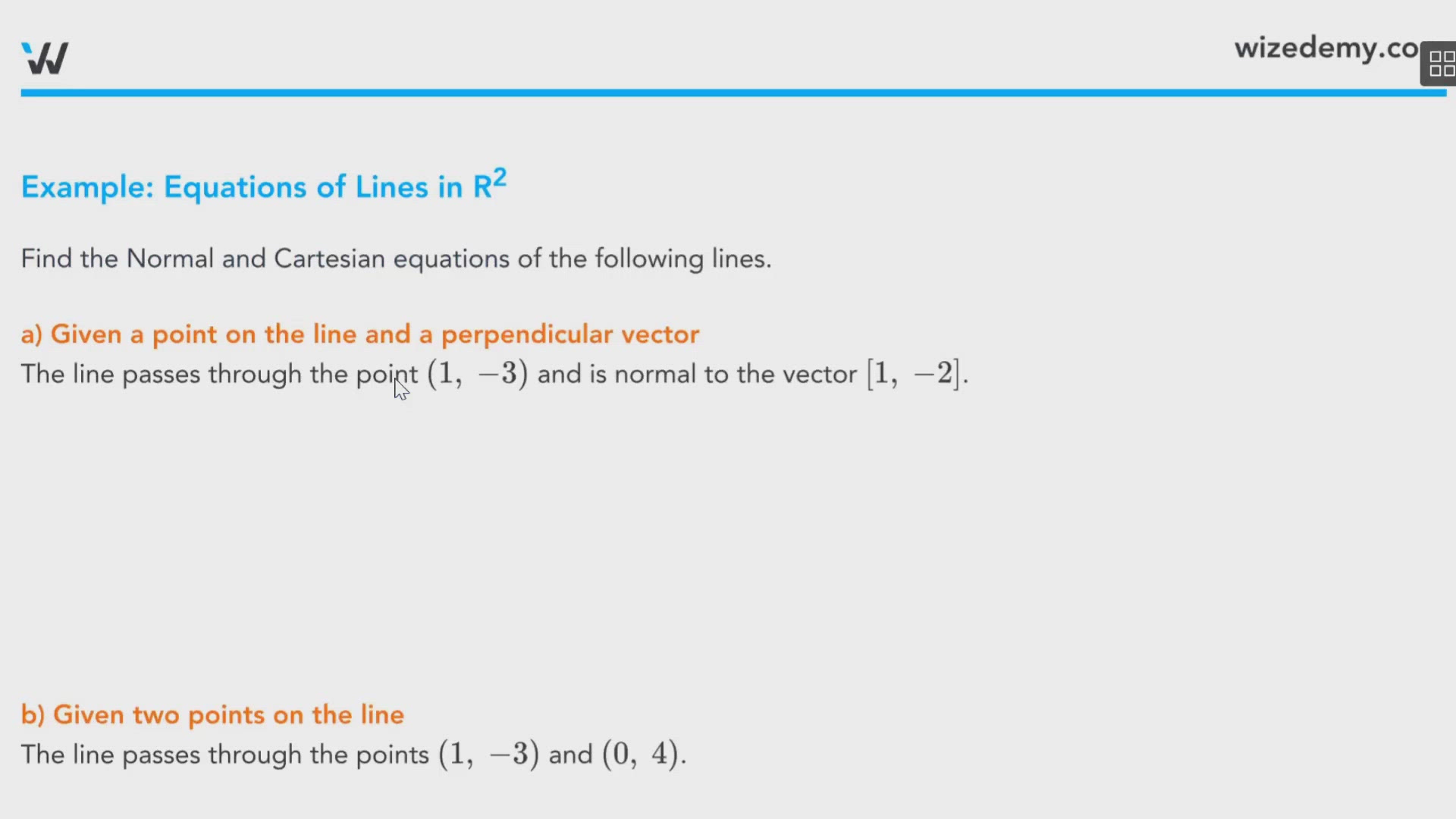

Example: Equations of Lines in R2

Find the Normal and Cartesian equations of the following lines.


a) Given a point on the line and a perpendicular vector

The line passes through the point (1, −3)\left(1,\ -3\right) and is normal to the vector [1, −2]\left[1,\ -2\right].


Position vector of the point: [1, −3]\left[1,\ -3\right]

Normal vector of the line: n⃗=[1, −2]\vec{n}=\left[1,\ -2\right] (or any scalar multiple)

Normal equation: ([x, y]−[1, −3])⋅[1, −2]=0\left(\left[x,\ y\right]-\left[1,\ -3\right]\right)\cdot\left[1,\ -2\right]=0

Cartesian equation: x−2y−[1, −3]⋅[1, −2]=0x-2y-\left[1,\ -3\right]\cdot\left[1,\ -2\right]=0 or x−2y−7=0x-2y-7=0



b) Given two points on the line

The line passes through the points (1, −3)\left(1,\ -3\right) and (0, 4)\left(0,\ 4\right).


Position vector of the point: [1, −3]\left[1,\ -3\right] or [0, 4]\left[0,\ 4\right]

Direction vector of the line: [1, −3]−[0, 4]=[1, −7]\left[1,\ -3\right]-\left[0,\ 4\right]=\left[1,\ -7\right] (or any scalar multiple)

Normal vector of the line: n⃗=[7, 1]\vec{n}=\left[7,\ 1\right] (or any scalar multiple)

Normal equation: ([x, y]−[1, −3])⋅[7, 1]=0\left(\left[x,\ y\right]-\left[1,\ -3\right]\right)\cdot\left[7,\ 1\right]=0

Cartesian equation: 7x+y−[1,−3]⋅[7,1]=07x+y-\left[1,-3\right]\cdot\left[7,1\right]=0 or 7x+y−4=07x+y-4=0



c) Given a point on the line and a parallel line

The line passes through the point (1, −3)\left(1,\ -3\right) and is parallel to the line r⃗=[2, 5]+t[−2, 1]\vec{r}=\left[2,\ 5\right]+t\left[-2,\ 1\right].


Position vector of the point: [1, −3]\left[1,\ -3\right]

Direction vector of the line: [−2, 1]\left[-2,\ 1\right] (or any scalar multiple)

Normal vector of the line: n⃗=[1, 2]\vec{n}=\left[1,\ 2\right] (or any scalar multiple)

Normal equation: ([x, y]−[1, −3])⋅[1, 2]=0\left(\left[x,\ y\right]-\left[1,\ -3\right]\right)\cdot\left[1,\ 2\right]=0

Cartesian equation: 1x+2y−[1,−3]⋅[1,2]=01x+2y-\left[1,-3\right]\cdot\left[1,2\right]=0 or x+2y+5=0x+2y+5=0



d) Given a point on the line and a perpendicular line

The line passes through the point (1, −3)\left(1,\ -3\right) and is perpendicular to the line r⃗=[2, 5]+t[−2, 1]\vec{r}=\left[2,\ 5\right]+t\left[-2,\ 1\right].


Position vector of the point: [1, −3]\left[1,\ -3\right]

Normal vector of the line: n⃗=[−2, 1]\vec{n}=\left[-2,\ 1\right] (or any scalar multiple)

Normal equation: ([x, y]−[1, −3])⋅[−2, 1]=0\left(\left[x,\ y\right]-\left[1,\ -3\right]\right)\cdot\left[-2,\ 1\right]=0

Cartesian equation: −2x+y−[1, −3]⋅[−2, 1]=0-2x+y-\left[1,\ -3\right]\cdot\left[-2,\ 1\right]=0 or 2x−y−5=02x-y-5=0

Practice: Equations of Lines in R2

Line 1 is a line that passes through the points (1, −2)\left(1,\ -2\right) and (3, 0)\left(3,\ 0\right).

Line 2 is the line that passes through the point (5, 3)\left(5,\ 3\right) and is perpendicular to the line [−1, −1]+t[−1, 1]\left[-1,\ -1\right]+t\left[-1,\ 1\right].

Determine the Cartesian equations of the lines 1 and 2.

Choose an answer

Create a free account to get started

Unlock full course notes by signing up

  • Video lessons taught by top educators
  • Practice questions with guided solutions
  • Written review notes for reference
  • Expert answers anytime from course tutors

Practice: Converting Equations of Lines in R2

Select all of the equations that are identical to this slope y-intercept equation y=−13x−1y=-\frac{1}{3}x-1.

Choose an answer

Create a free account to get started

Unlock full course notes by signing up

  • Video lessons taught by top educators
  • Practice questions with guided solutions
  • Written review notes for reference
  • Expert answers anytime from course tutors

Create a free account to get started

Unlock full course notes by signing up

  • Video lessons taught by top educators
  • Practice questions with guided solutions
  • Written review notes for reference
  • Expert answers anytime from course tutors

Angle Between Lines

The angle between any two lines in R2R^2 is the angle between the two direction vectors of the lines or between the two normal vectors of the line.

Image illustrating Angle Between Lines


Parallel Lines

  • m1→\overrightarrow{m_1} and m2→\overrightarrow{m_2} are parallel (scalar multiples)
  • n1→\overrightarrow{n_1} and n2→\overrightarrow{n_2} are parallel (scalar multiples)
  • m1→\overrightarrow{m_1} and n2→\overrightarrow{n_2} are perpendicular (dot product is 0)
  • m2→\overrightarrow{m_2} and n1→\overrightarrow{n_1} are perpendicular (dot product is 0)

Perpendicular Lines

  • m1→\overrightarrow{m_1} and m2→\overrightarrow{m_2} are perpendicular (dot product is 0)
  • n1→\overrightarrow{n_1} and n2→\overrightarrow{n_2} are perpendicular (dot product is 0)
  • m1→\overrightarrow{m_1} and n2→\overrightarrow{n_2} are parallel (scalar multiples)
  • m2→\overrightarrow{m_2} and n1→\overrightarrow{n_1} are parallel (scalar multiples)

Example

Find the angle between the lines r1⃗=[1,2]+t[−1,3]\vec {r_1}=[1, 2]+t[-1, 3] and x+y−3=0x+y-3=0.


Line 1:

  • Direction vector: m1⃗=[−1, 3]\vec{m_1}=[-1,\ 3]
  • Normal vector: n1⃗=[3, 1]\vec {n_1}=[3,\ 1]

Line 2:

  • Normal vector: n2⃗=[1, 1]\vec {n_2}=[1,\ 1]
  • Direction vector m2⃗=[1,−1]\vec {m_2}=[1, -1]

Therefore, the angle between the two lines can be calculated with either one of these formulas:

  • cos⁡−1([−1, 3]⋅[1, −1] ∣∣[−1, 3]∣∣∣∣[1, −1]∣∣)=cos⁡−1(−4102)=cos⁡−1(−25)≈153.43°\cos^{-1}\left(\frac{\left[-1,\ 3\right]\cdot\left[1,\ -1\right]}{\ \left|\left|\left[-1,\ 3\right]\right|\right|\left|\left|\left[1,\ -1\right]\right|\right|}\right)=\cos^{-1}\left(\frac{-4}{\sqrt{10}\sqrt{2}}\right)=\cos^{-1}\left(-\frac{2}{\sqrt{5}}\right)\approx153.43\degree
  • cos⁡−1([3, 1]⋅[1, 1]∣∣[3, 1]∣∣∣∣[1, 1]∣∣)=cos⁡−1(4102)=cos⁡−1(25)≈26.57°\cos^{-1}\left(\frac{\left[3,\ 1\right]\cdot\left[1,\ 1\right]}{\left|\left|\left[3,\ 1\right]\right|\right|\left|\left|\left[1,\ 1\right]\right|\right|}\right)=\cos^{-1}\left(\frac{4}{\sqrt{10}\sqrt{2}}\right)=\cos^{-1}\left(\frac{2}{\sqrt{5}}\right)\approx26.57\degree
