If the tension in BC is 500N, determine the tension in BD and AB, and determine
the stretch in the spring.



Solution:


ΣFy=0\Sigma F_y=0
500 sin⁡45−FBDsin⁡36.9=0500\ \sin45-F_{BD}\sin36.9=0
FBD=589NF_{BD}=589N

Fs=kΔlF_s=k\Delta l ΣFx=0\Sigma{F}_x=0
Δl=Fsk=825N800 N/m\Delta l=\frac{F_s}{k}=\frac{825N}{800\ N/m} 500cos45+589cos36.9=Fs500cos45+589cos36.9=F_s
Δl=1.03m\Delta l=1.03m Fs=825NF_s=825N

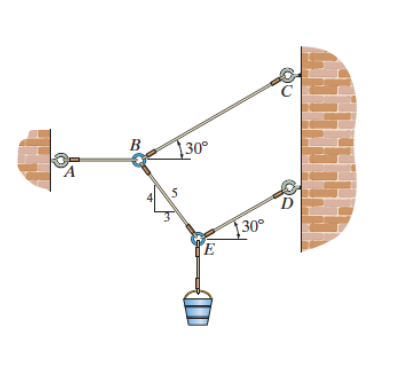

Determine the mass of A needed to hold the system at equilibrium.



Solution:
TBC=40g=392.4 NT_{BC}=40g=392.4\ N

ΣFy=0\Sigma{F}_y=0
392.4sin30−TAE=0392.4sin30-T_{AE}=0
TAE=196.2NT_{AE}=196.2N
TAE=MAgT_{AE}=M_Ag
196.2N=MA(9.81m/S2)196.2N=M_A(9.81m/S2)
MA=20kgM_A=20kg
If l = 3ft, determine the tension each cable.

Solution:
2sin⁡θ=3sin⁡40 → θ=25.37o\frac{2}{\sin\theta}=\frac{3}{\sin40}\ \rightarrow\ \theta=25.37^o

ΣFx=0\Sigma {F}_x=0
TABcos40−TACcos25.37=0T_{AB}cos40-T_{AC}cos25.37=0
TAC=TABcos⁡40cos⁡25.37  (1)T_{AC}=T_{AB}\frac{\cos40}{\cos25.37}\ \ \left(1\right)

ΣFy=0\Sigma F_y=0
TAC sin⁡25.37+TABsin⁡40−200=0T_{AC}\ \sin25.37+T_{AB}\sin40-200=0
(cos⁡40cos⁡25.37sin⁡25.3+sin⁡40)TAB=200\left(\frac{\cos40}{\cos25.37}\sin25.3+\sin40\right)T_{AB}=200
TAB=198.8NT_{AB}=198.8N
Sub into (1)

TAC=198.8cos40cos25.37T_{AC}=198.8\frac{cos40}{cos25.37}
TAC=168.5NT_{AC}=168.5N
checklist
Mark Yourself Question
  1. Grab a piece of paper and try this problem yourself.
  2. When you're done, check the "I have answered this question" box below.
  3. View the solution and report whether you got it right or wrong.

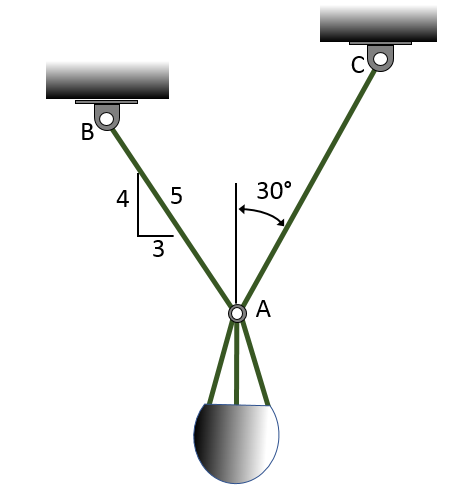

1) The lamp weights 57 N. Determine the tension in each of AB and AC needed to carry the lamp.



PAGE BREAK

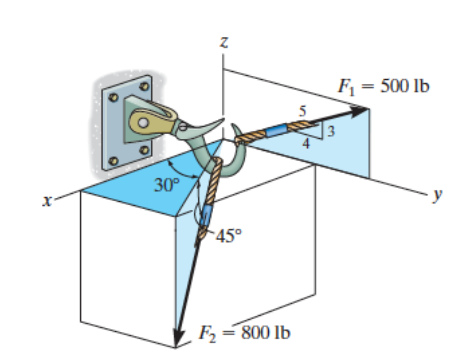

2) Determine the resultant force on the hook:




checklist
Mark Yourself Question
  1. Grab a piece of paper and try this problem yourself.
  2. When you're done, check the "I have answered this question" box below.
  3. View the solution and report whether you got it right or wrong.
Determine the maximum allowable weight for the lamp at F if each of the cables can only handle a load of 50 N.





checklist
Mark Yourself Question
  1. Grab a piece of paper and try this problem yourself.
  2. When you're done, check the "I have answered this question" box below.
  3. View the solution and report whether you got it right or wrong.
Determine the tension in each of the cables supporting the phone tower under 7000 lb of compression.





checklist
Mark Yourself Question
  1. Grab a piece of paper and try this problem yourself.
  2. When you're done, check the "I have answered this question" box below.
  3. View the solution and report whether you got it right or wrong.
Determine the maximum allowable load if each of the cables can only handle 6 kN of tension.


Quiz: Practice Questions - Particle Equilibrium (Part 1)
Determine the maximum weight of the load if each cable can handle a tension of 100N.



Quiz: Practice Questions - Particle Equilibrium (Part 2)
Find the resultant force on the hook.

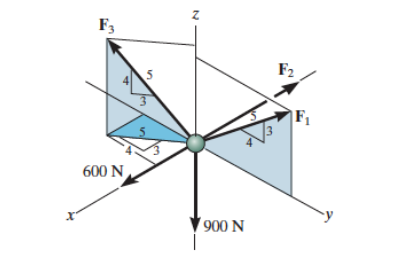

Determine the values of F1, F2 and F3 needed to keep the system at equilibrium.
