MOMENT (M):
aka Moment of Force,  means "moving power"
is arises when a FORCE acts at a distance from a POINT or AXIS to cause ROTATION
measure of the tendency of force to cause body to rotate about a point or axis
is similar to the term Torque or Twist from Physics 1 classes
if MORE THAN 1 MOMENT on the body, then must Sum M's (like we Sum F's earlier)
FORCE vs. MOMENT:
Forces tend to cause translation of an object (Newton's 2nd Law, F = m a)
Moments tend to cause rotation (Newton's 2nd Law for Rotational Motion, T = I w).
in 2D
about a point, z-axis out of page
M = F d      or     M = F d sin(theta)
M represented by CCW "curl" using Right-Hand-Rule
thinking of a SEE-SAW, the rider on the LEFT would cause a CCW moment, the rider on the RIGHT would cause a CW moment.  we would need to Sum M's to see which direction it will rotate.

PAGE BREAK
in 3D :
about a point or line or axis
M = r x F   (cross product, it will handle the angle)
M represented by "curl with vector arrow pointing in the direction of the line/axis" using Right-Hand-Rule

Determine the moment of the force F=80 lb about the base A created by the work at C.

in 2D: M = F d
Ma = Fx (12') + Fy (0')
       = 80 (4/5)(12') = 768 lb ft CW

Mark Yourself Question

Grab a piece of paper and try this problem yourself.
When you're done, check the "I have answered this question" box below.
View the solution and report whether you got it right or wrong.

Determine the moment of the force P=50 lb about the base A created by the work at B.

I have answered this question

If Fb = [3j-4k] kN, find the moment about the base O.

in 3D, the Moment vector M = r x F
F = [3j-4k] kN
building the position vector r using points A and O, results in:
r = [0i + 0j + 8k]m

taking the cross product:
|    i     j     k   |
|   0    0    8   |      =    [(0)(-4)-(8)(3)]i - [(0)(-4)-(8)(0)]j + [(0)(3)-(0)(0)]k
|   0    3   -4  |

                             = [ -24i ] kNm

Mark Yourself Question

Grab a piece of paper and try this problem yourself.
When you're done, check the "I have answered this question" box below.
View the solution and report whether you got it right or wrong.

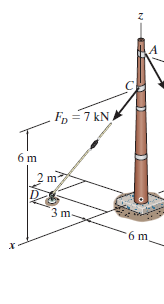

If FCD = [2i-3j-6k] kN, find the moment about the base O due to just this force.

I have answered this question
